ABOUT THIS PRODUCT

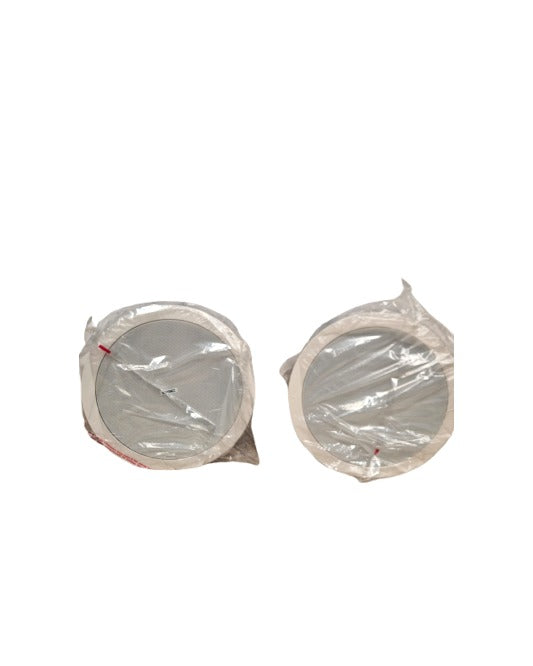

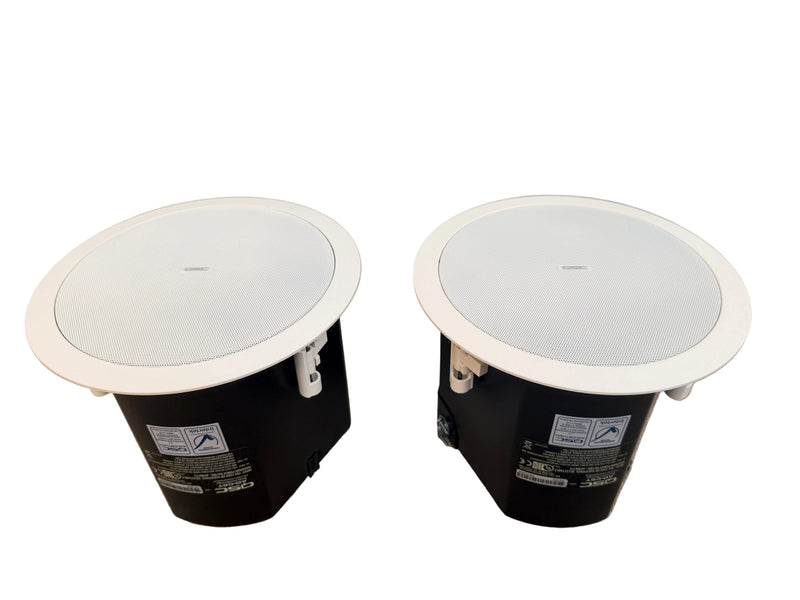

QSC AD-C6T-WH - Ceiling Loudspeakers (Pair - White) - Like New w/ Original Box & Installation Kit

Name: QSC AD-C6T-WH - Ceiling Loudspeakers (Pair - White) - Like New w/ Original Box & Installation Kit
Brand: QSC
Price: 39.99 GBP
Availability: InStock
Rating: 4.9 (211 reviews)

Why This One

Like New condition - sealed and unused.
Fully tested - all applicable functions verified working.
6.5 inch, two way, foreground / background ceiling loudspaker with 70/100V transformer.

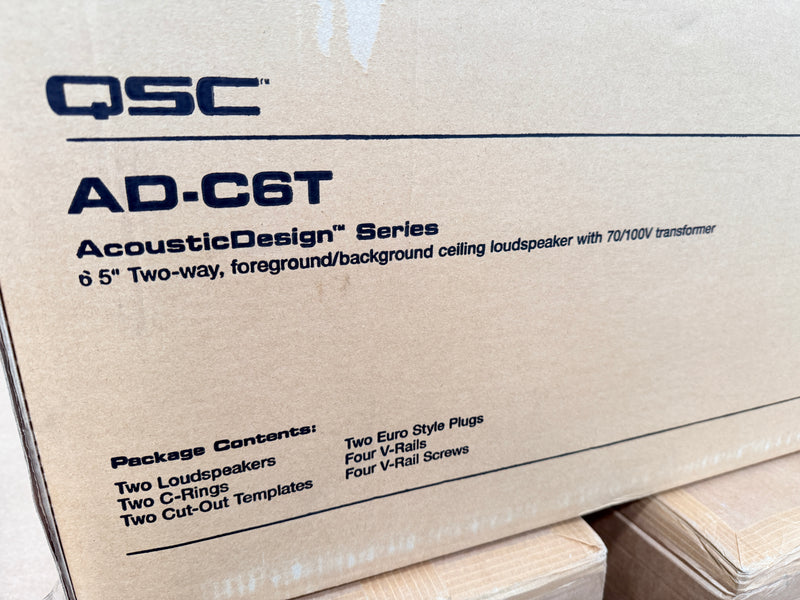

Includes original box and manuals - arrives complete and installation-ready.
Sold as a factory matched pair, which is how QSC supplies this model, so tonal consistency is guaranteed.

Condition: Like New - Unused in Original Box

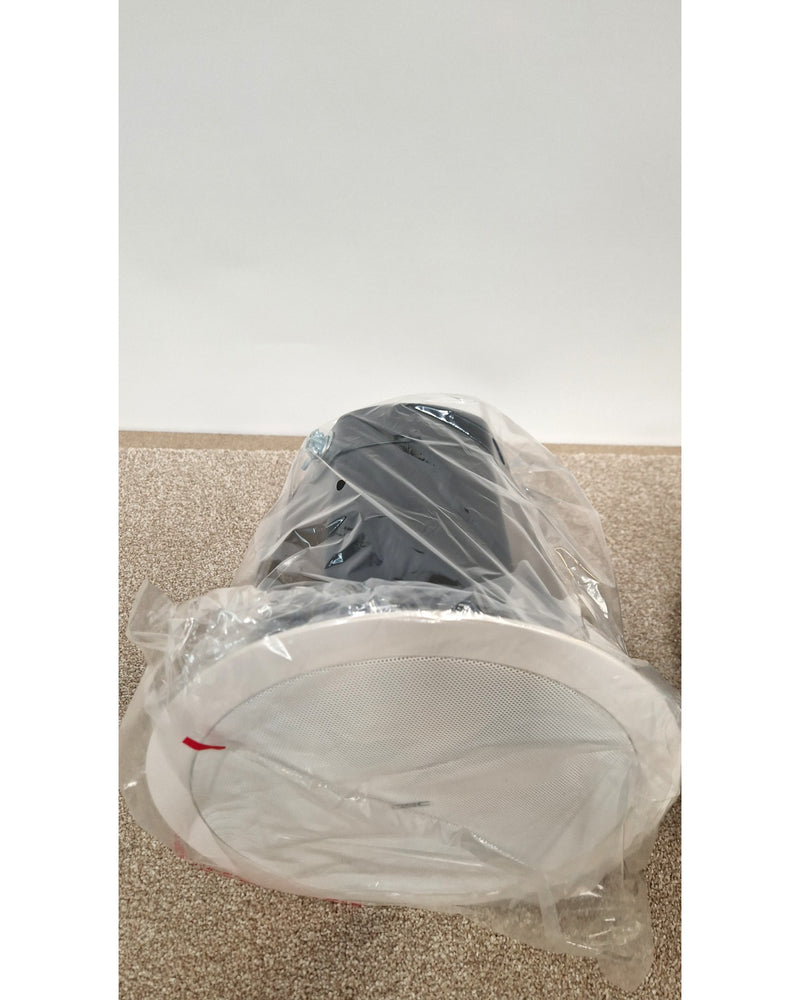

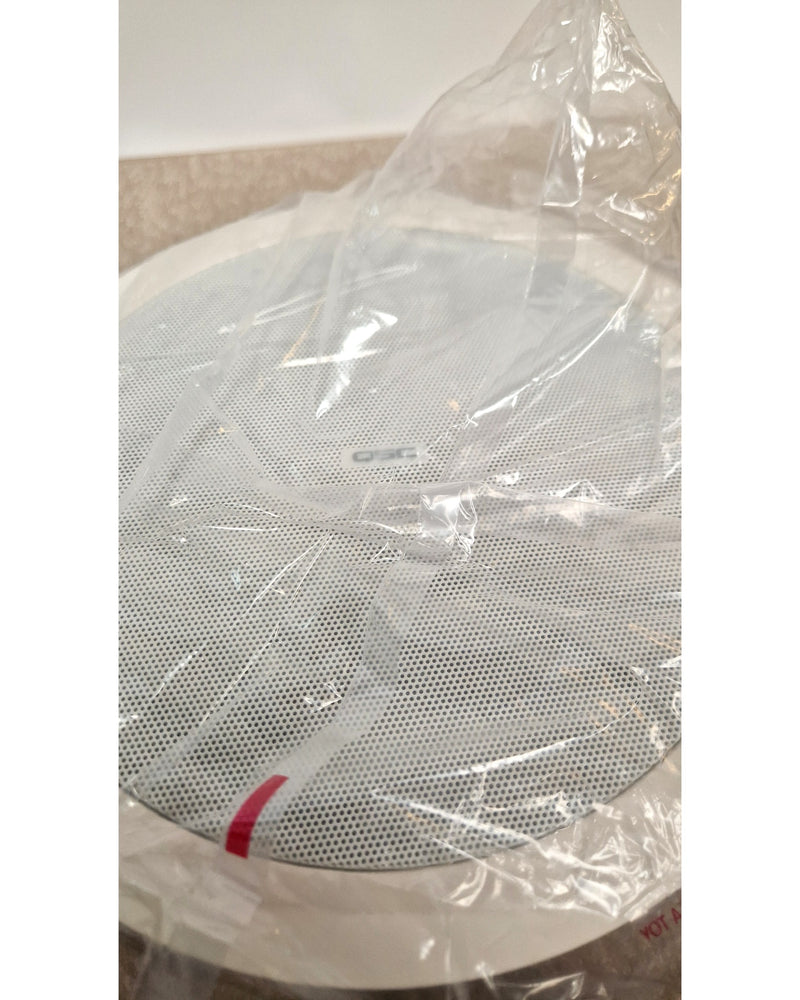

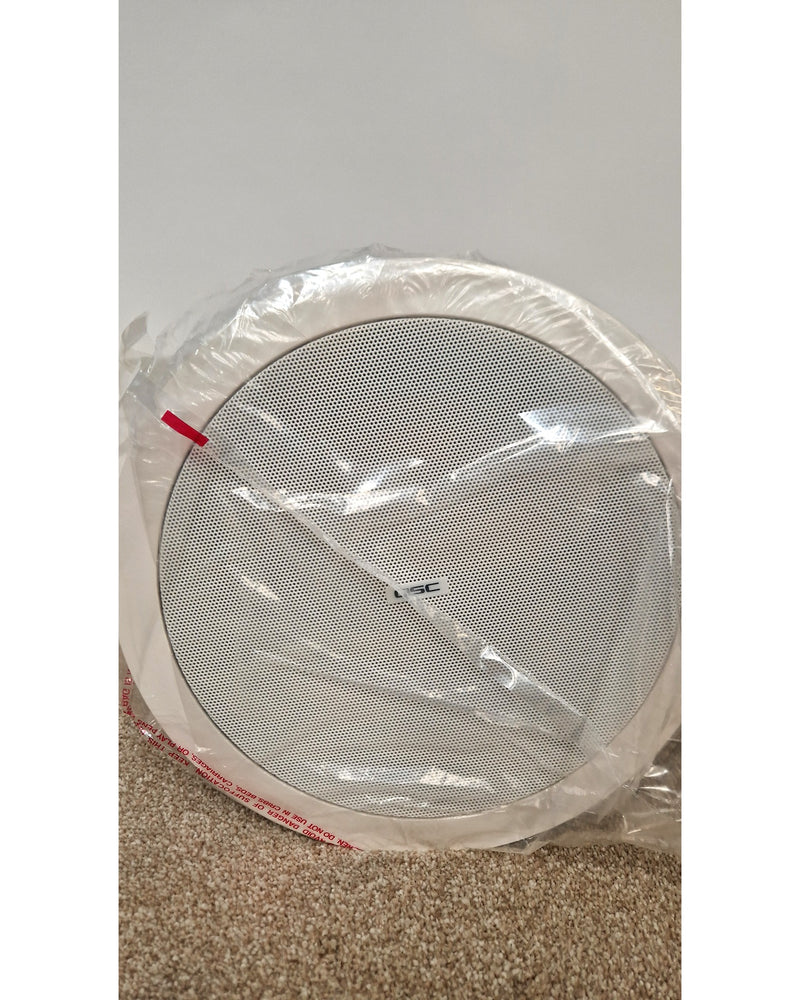

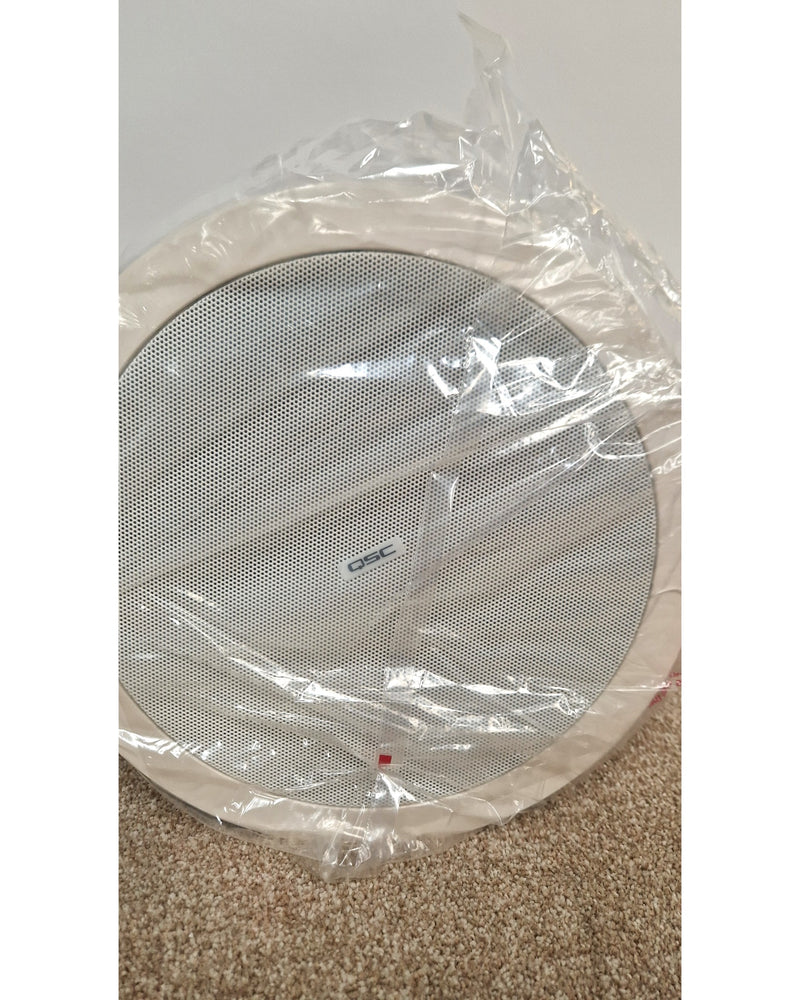

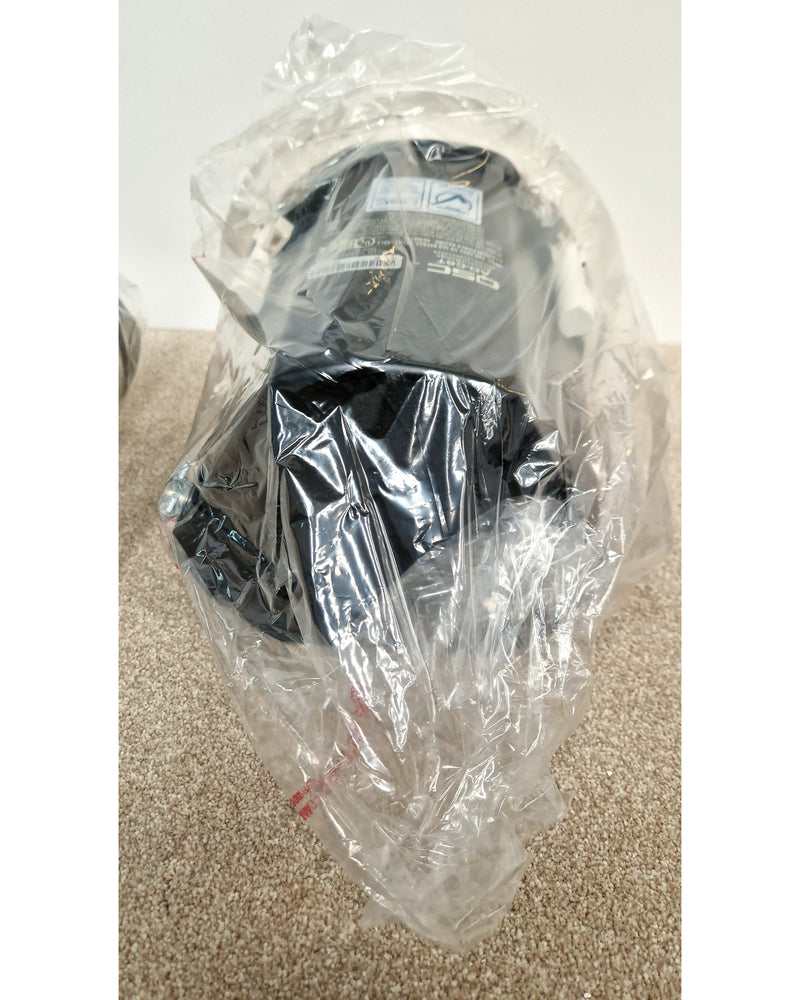

This QSC AD-C6T ceiling speaker pair (white) is a like new-condition item and has been unused. It is still in its original box. It has passed our 7-point functional test.

What's Included

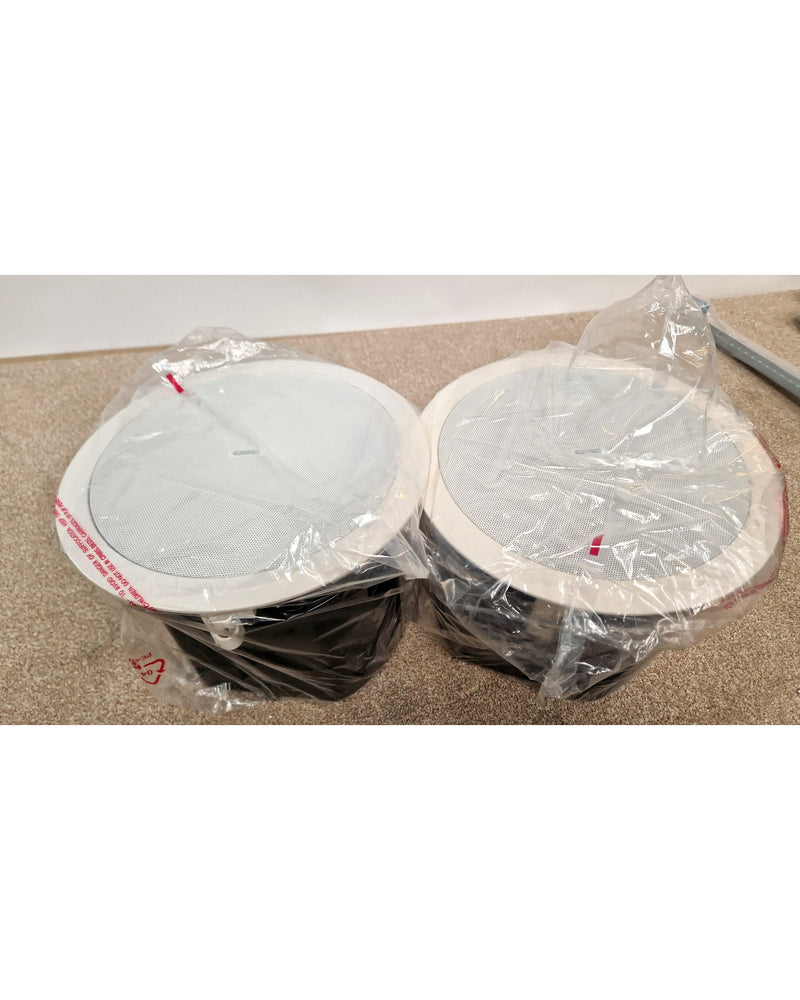

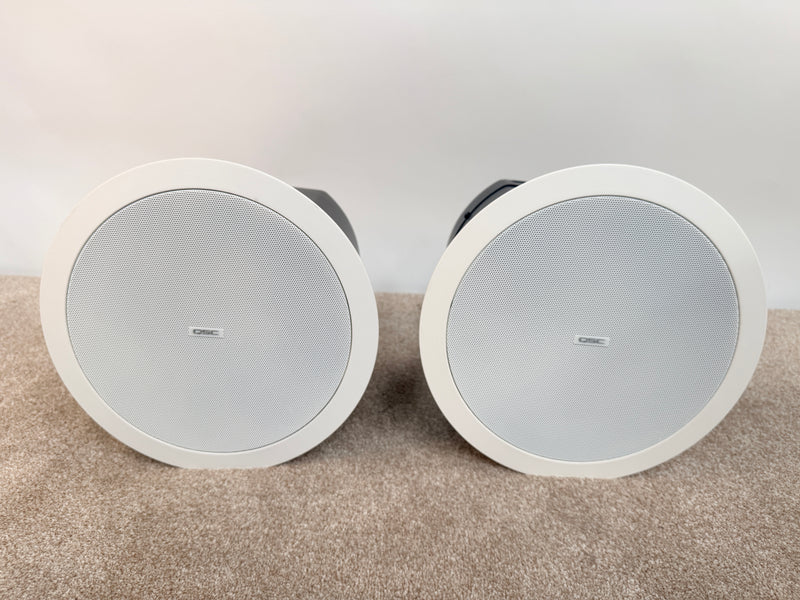

QSC AD-C6T (Pair)

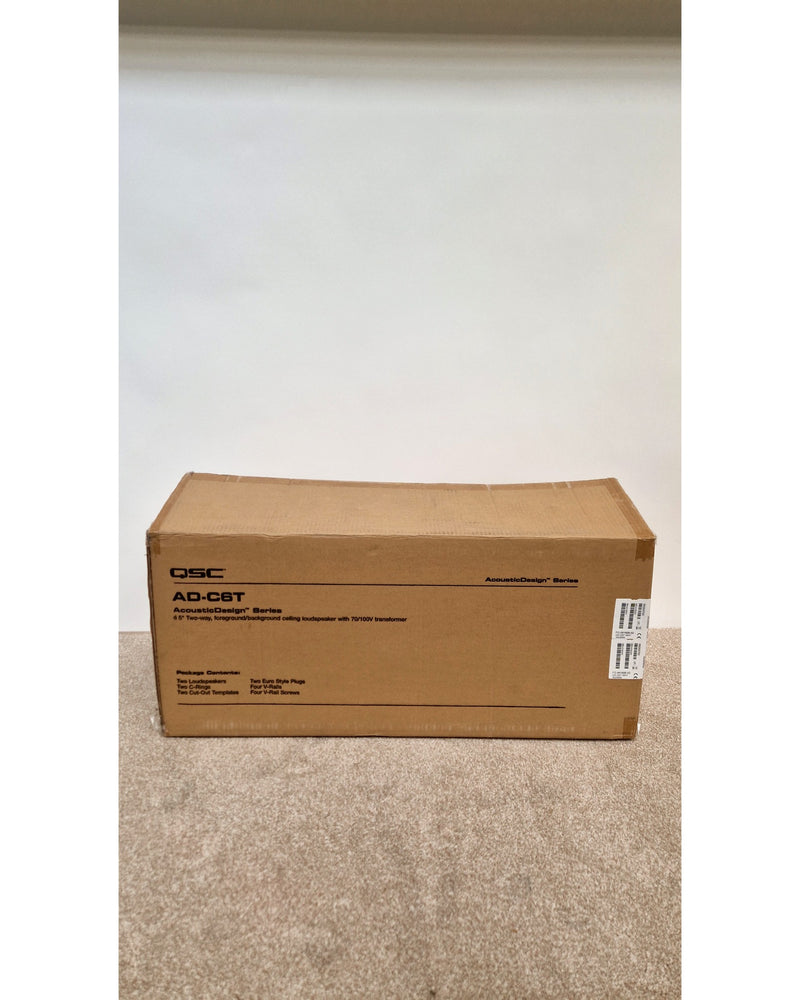

Original Box

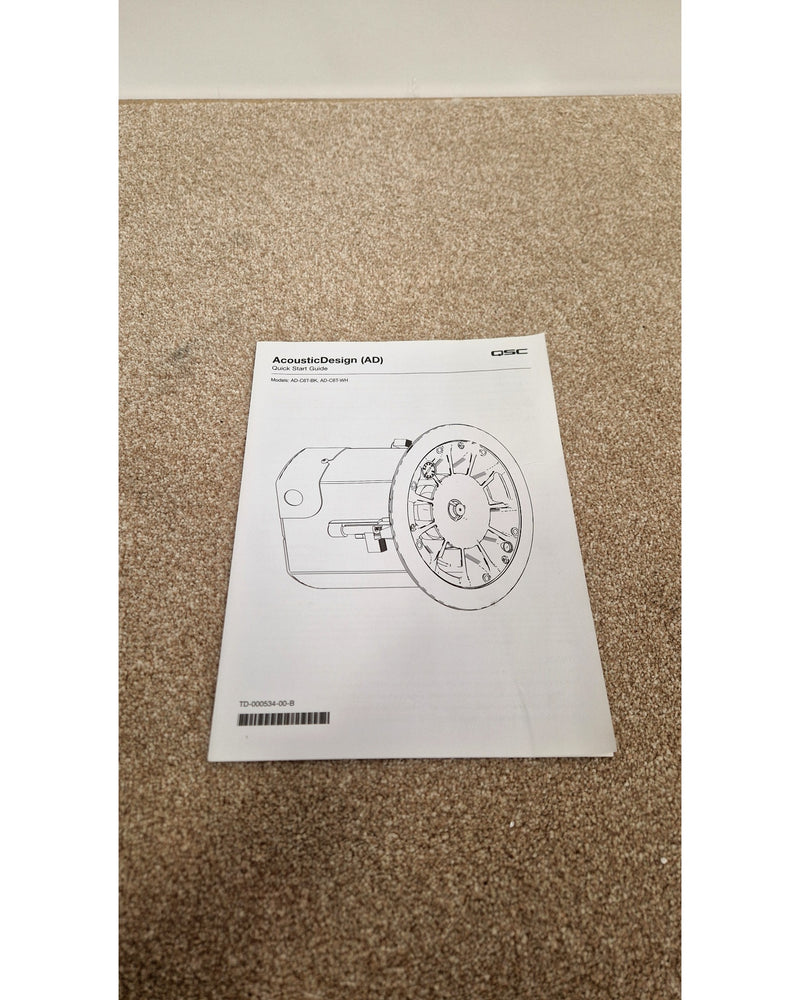

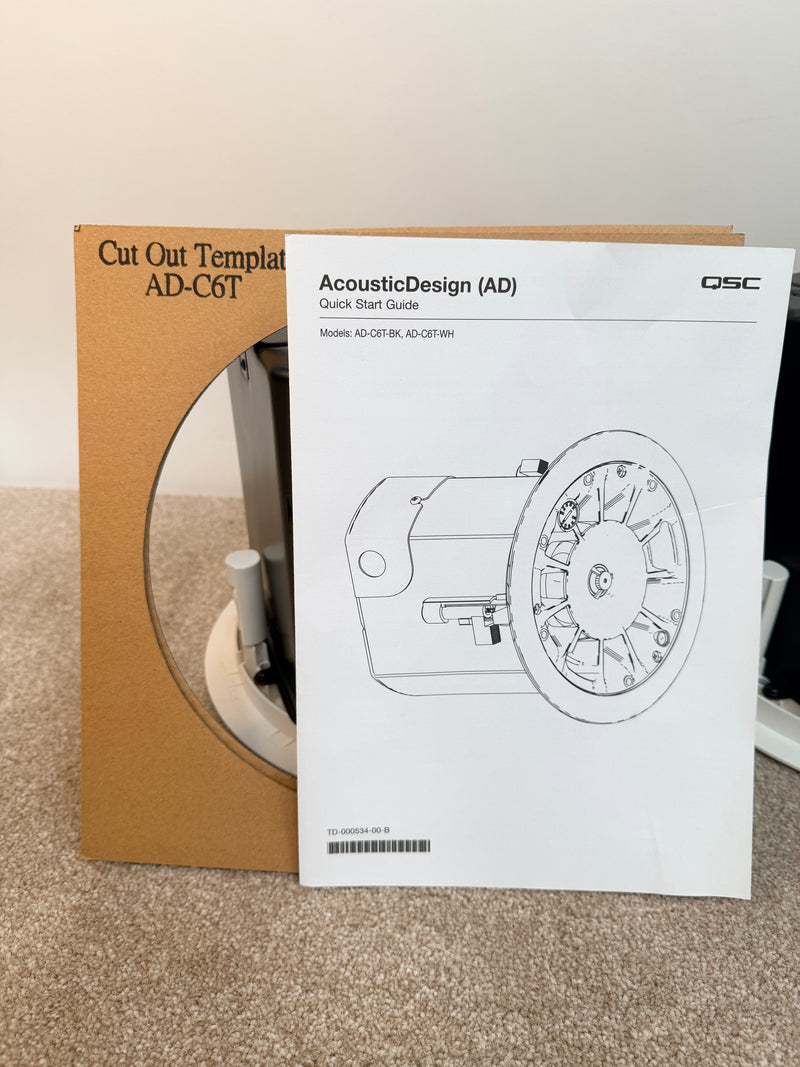

Manuals
Full Installation Kit

About This Model

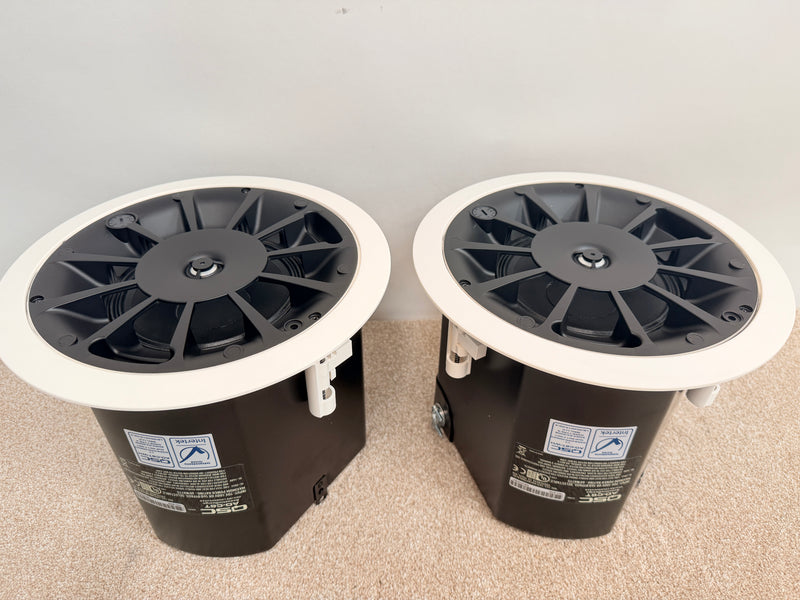

The QSC AD-C6T-WH is a 6.5 inch two way ceiling loudspeaker from the AcousticDesign Series, supplied as a matched pair in white (RAL 9010). Each unit combines a 165 mm weather treated paper cone woofer with a 19 mm aluminium dome tweeter mounted on a DMT waveguide, giving an effective frequency range of 65 Hz to 20 kHz, 88 dB sensitivity and a maximum SPL of 106 dB continuous / 112 dB peak.

DMT (Directivity Matched Transition) matches the tweeter waveguide to the natural conical behaviour of the woofer at crossover, producing a consistent 135° conical coverage pattern and clean off axis response. Because the whole AcousticDesign family shares tonal characteristics across ceiling, surface and pendant models, these blend seamlessly into mixed installations.

A low loss, low saturation 60 watt transformer keeps response accurate on distributed lines. Tap selection is via a rotary switch under the grille: 7.5 W, 15 W, 30 W and 60 W on 70 V, or 15 W, 30 W and 60 W on 100 V, plus a 16 ohm bypass for direct low impedance drive. Connection is via a locking 4 pole Euroblock with parallel output, accepting up to four 18 AWG pairs, and the conduit cover plate lifts off with a single captive screw for pre install wiring.

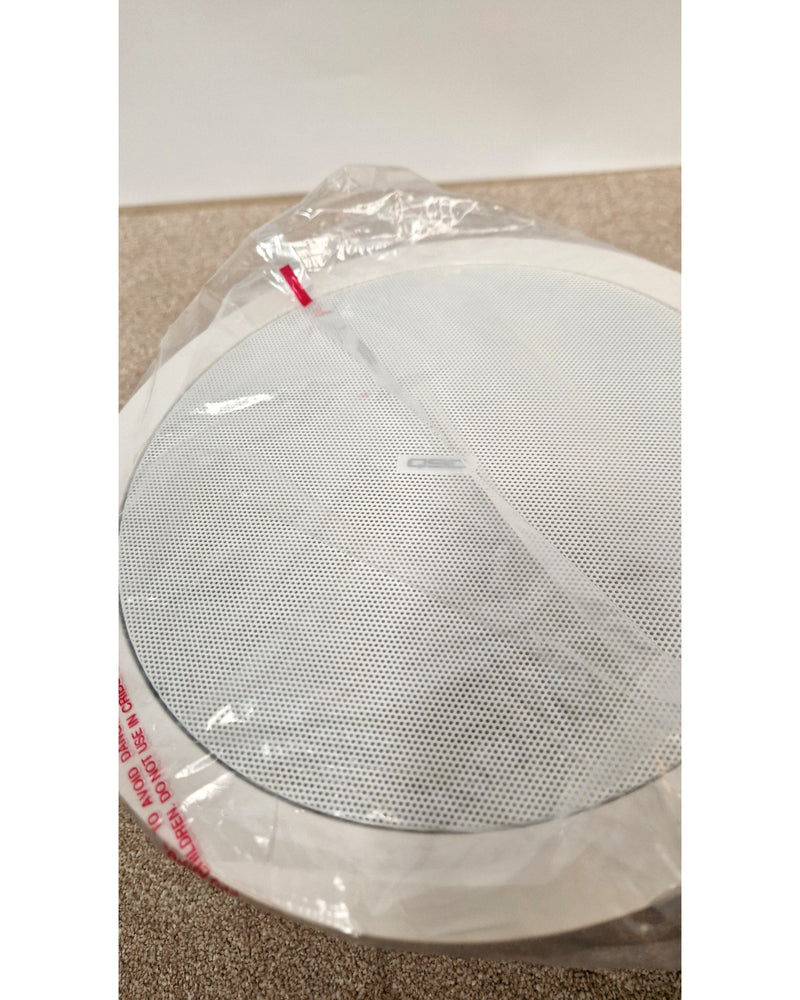

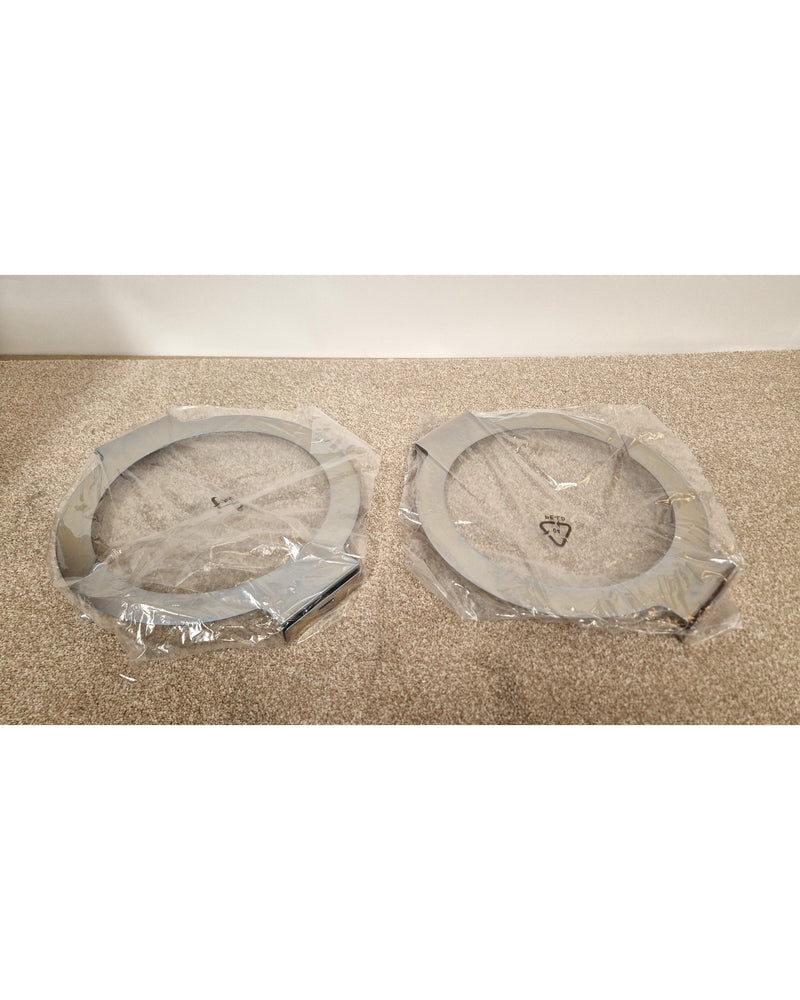

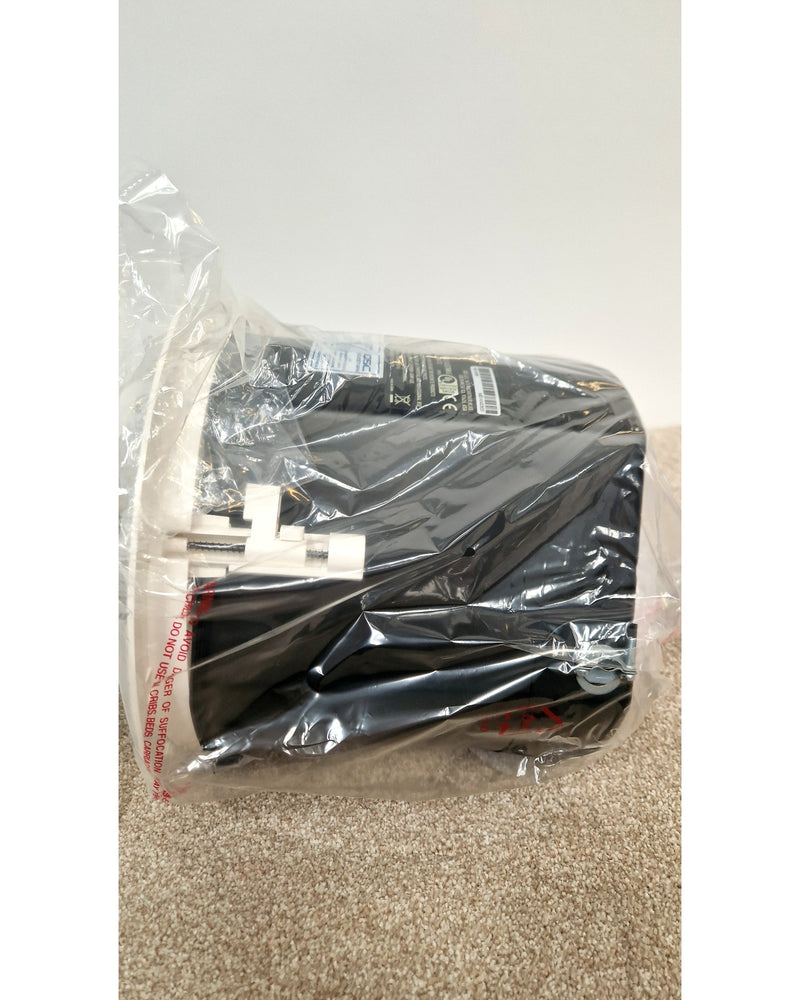

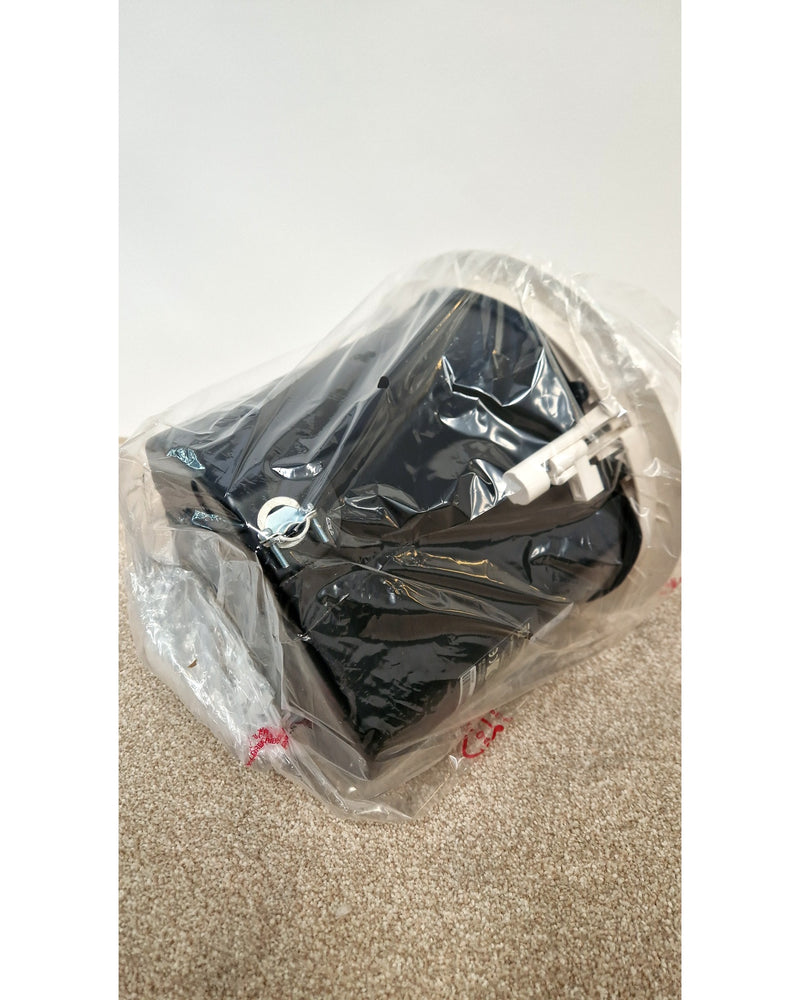

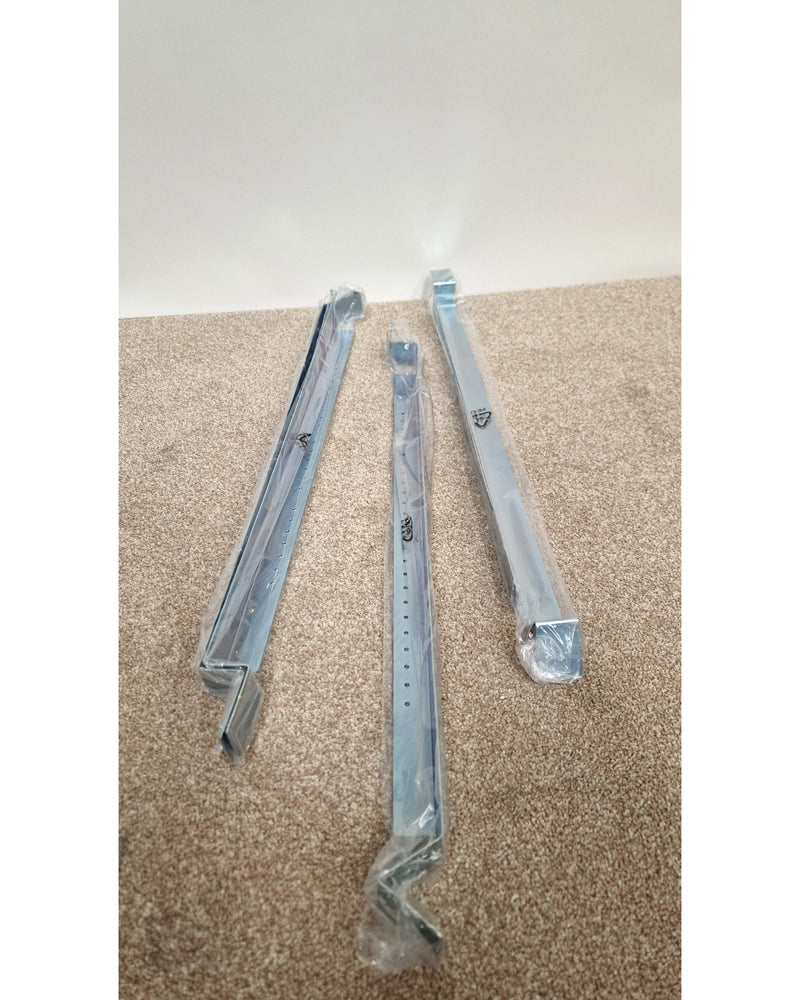

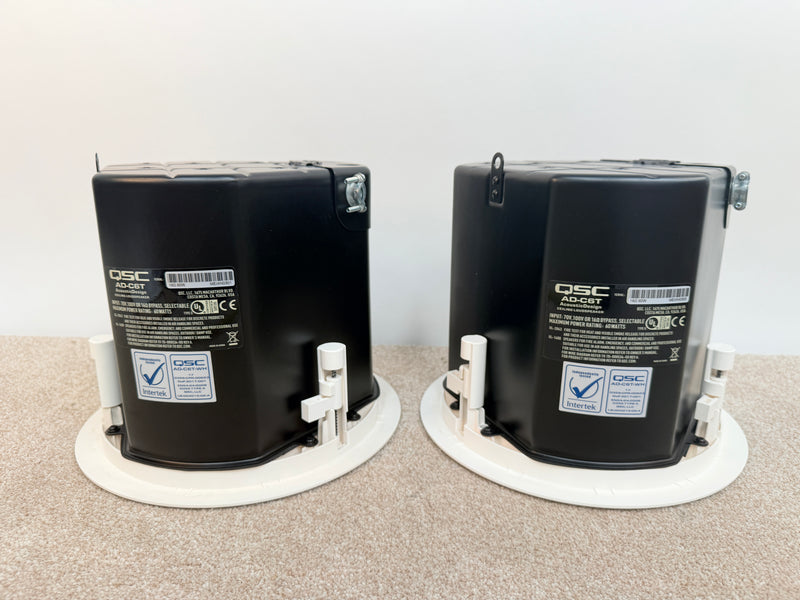

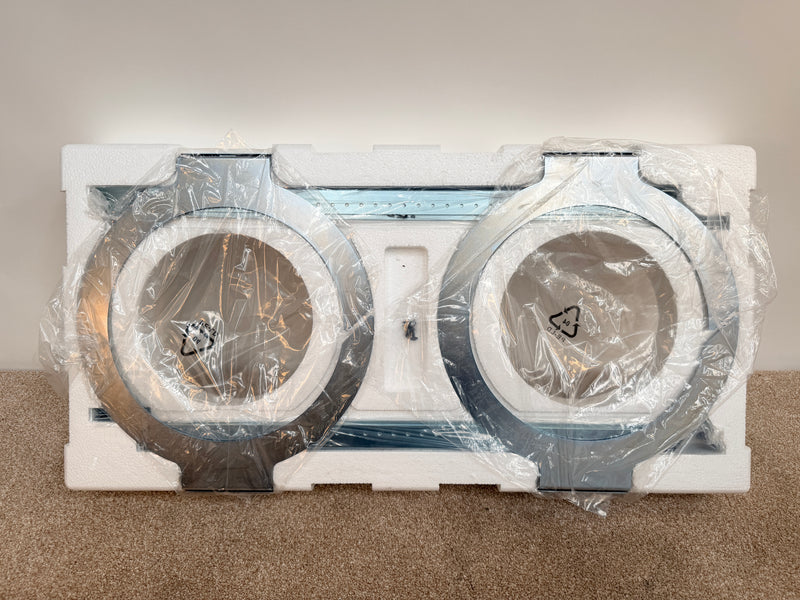

Construction is a UV stabilised ABS baffle on a powder coated steel back can with a snap fit magnetic steel grille and a blemish free removable QSC logo for installs where branding is not permitted. IP-34 rated and specified for indoor use across a -20 to 50 °C operating range. Installation uses the 3x double stepped, long travel dog ear blind mount system, capturing 0 to 2.25 inches of ceiling thickness, with C-ring and tile rails included.

Certified to UL1480 and UL2043 for use in air handling plenums, NFPA90 and NFPA70 compliant, EN54-24 Type A, with a UL1876 registered transformer and a UL94-V0 / 5VB rated baffle. EASE, CF2, CAD and BIM data are published by QSC for system design.

Specifications

Field	Value
MPN (primary)	AD-C6T-WH

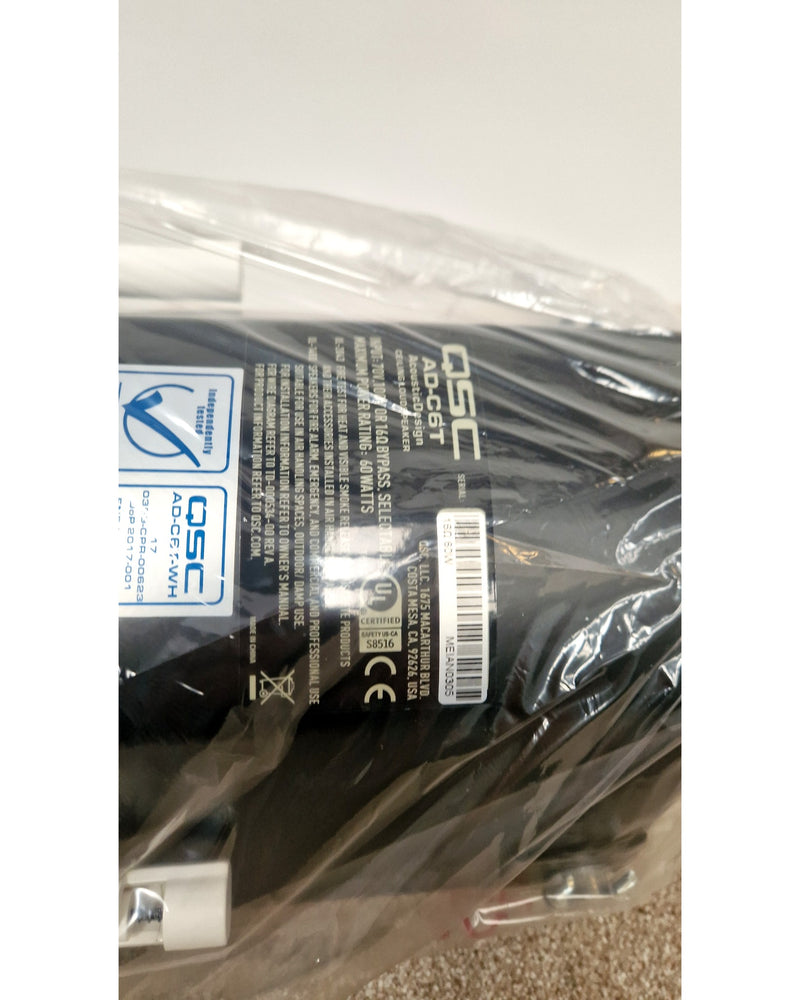

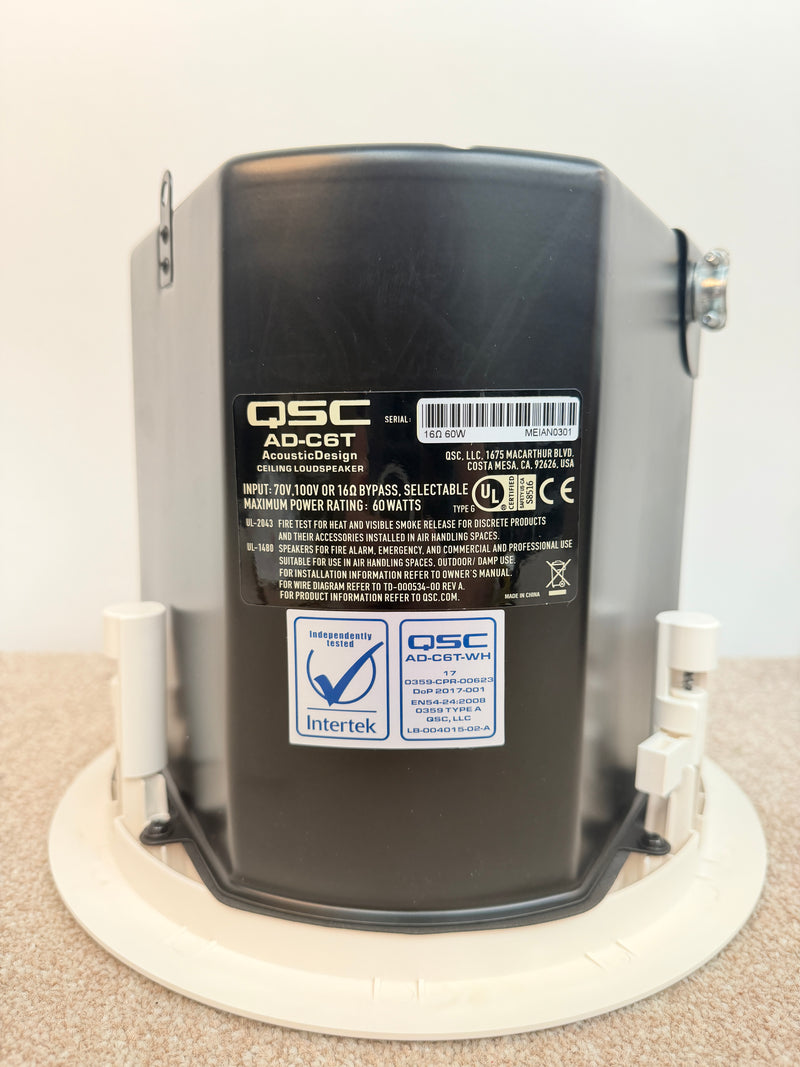

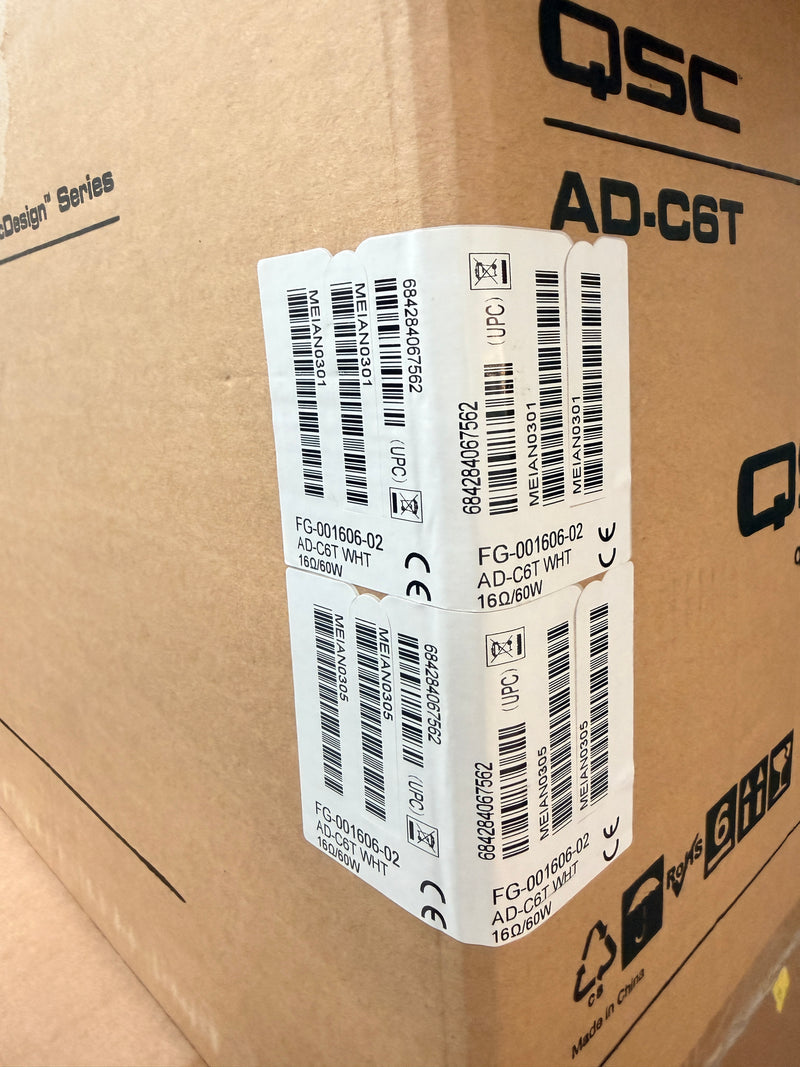

QSC Factory Code	FG-001606-02 (printed as "AD-C6T WHT 16Ω/60W")
UPC	684284067562
EAN-13	0684284067562
Brand	QSC
Series	AcousticDesign
Sold as	Pair
Type	6.5 in two-way ceiling loudspeaker
LF driver	165 mm weather-treated paper cone
HF driver	19 mm aluminium dome on DMT waveguide
Frequency range	65 Hz to 20 kHz
Sensitivity	88 dB (1 W / 1 m)
Max SPL	106 dB continuous / 112 dB peak
Coverage	135° conical DMT
Power handling	60 W
Impedance	16 ohm bypass
Line voltage	70 V / 100 V
Transformer taps	7.5 / 15 / 30 / 60 W (70 V), 15 / 30 / 60 W (100 V)
Connector	4-pole locking Euroblock with parallel output
Enclosure	ABS baffle on powder-coated steel back can
Grille	Powder-coated steel, snap-fit magnetic
Colour	White (RAL 9010)
Ingress protection	IP-34, indoor use
Operating temp	-20 to 50 °C
Cut-out diameter	245 mm

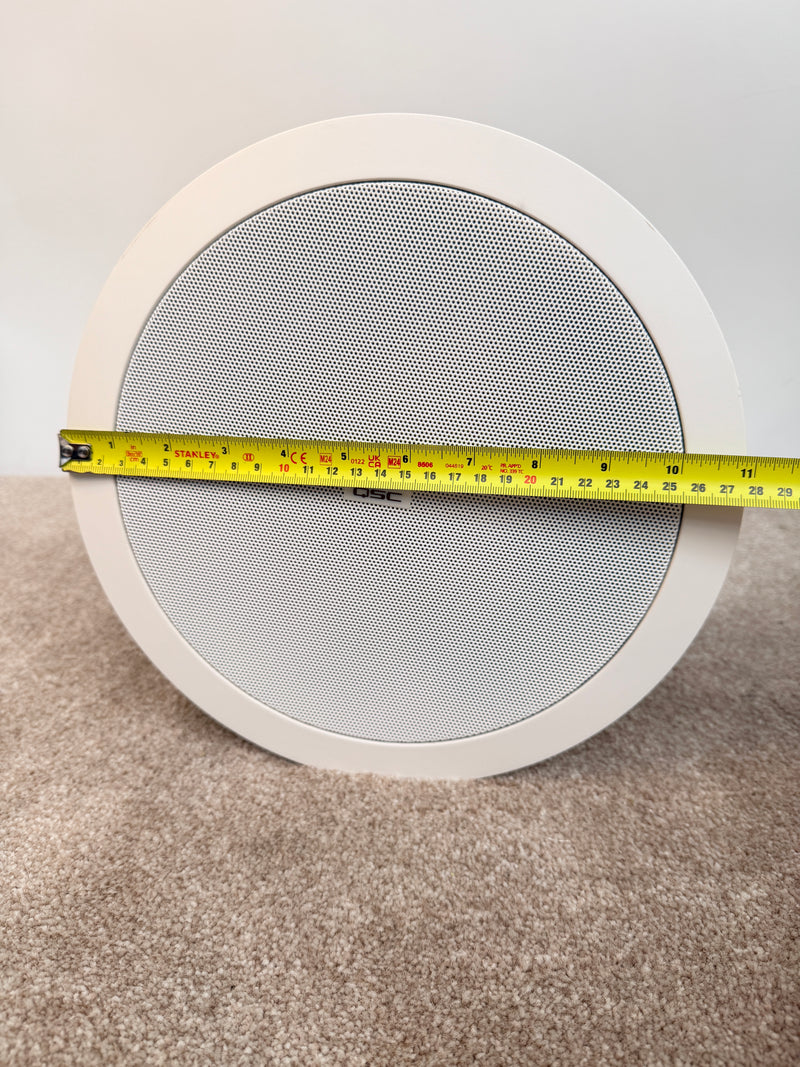

Dimensions	280 mm dia x 237 mm depth
Ceiling thickness range	0 to 57 mm (0 to 2.25 in)
Net weight	4.3 kg each
Shipping weight	12.6 kg (pair packed)
Shipping dimensions	330 x 737 x 381 mm
Certifications	UL1480, UL2043, NFPA90, NFPA70, EN54-24 Type A

General

Brand	QSC
Model	QSC AD-C6T-WH - Ceiling Loudspeakers (Pair - White) - Like New w/ Original Box & Installation Kit
Category	Hi-Fi Speakers
Condition	Like New
