MC2 (MC Squared) S800 S-Series Premium Studio Power Amplifier
MC2 (MC Squared) S800 S-Series Premium Studio Power Amplifier
Regular Price
£1,500.00
Regular Price
£2,200.00
Sale Price
£1,500.00
Unit price
/
per
Free Express Shipping (2-3 days)
Out of Stock
- • Ready to Ship from our UK Warehouse
- • Professionally Refurbished
- • 30-day Money Back Guarantee
Couldn't load pickup availability

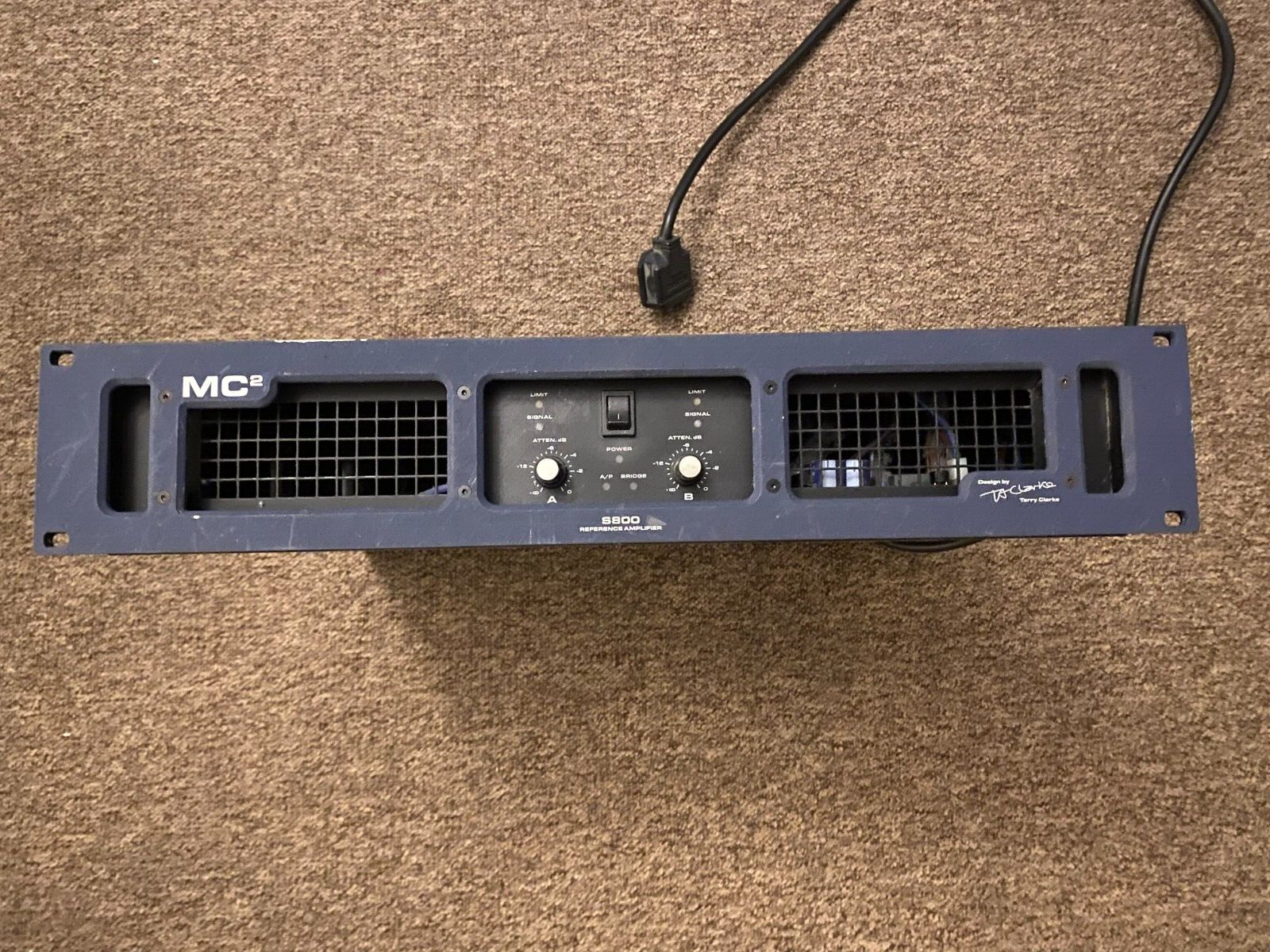

In very good condition, a few small scratches on the front panel but no major defects.
The MC2 Audio S800 is a high-fidelity power amplifier designed for studio monitoring environments and other applications where transparency and uncompromised performance are essential. Here are some key features and specifications of the S800:
- Frequency Response: The S800 has a frequency response of 20Hz to 20kHz (+0/-0.5dB), ensuring a wide and accurate sound range.
- Power Output: It delivers 950W into 4 ohms per channel and can produce up to 1900W in bridge mode.
- Current Draw: At 240V into 4 ohms, it draws 2.1A, and at 120V into 4 ohms, it draws 4.2A.
- Dimensions and Weight: The amplifier measures 88(h) x 482(w) x 428(d) and weighs 20.5kg. When boxed for shipping, it measures 230 x 580 x 560 (single box for UK shipping) or 250 x 610 x 600 (double box for outside UK), with a shipping weight of 22.3kg.
- Output Stages: The S800 utilizes the best complimentary AB bipolar output stages combined with the unique MC2 current-driven floating drive stage for minimal signal degradation.
- Limiters: Sophisticated side-chain limiters prevent distortion and speaker damage but remain out-of-circuit until the onset of clipping, ensuring they do not compromise the signal path under normal working conditions.
- Power Supply: It features a bespoke high-fidelity shielded toroidal power supply and intelligently controlled low-noise fans to provide optimal conditions for the output stages.

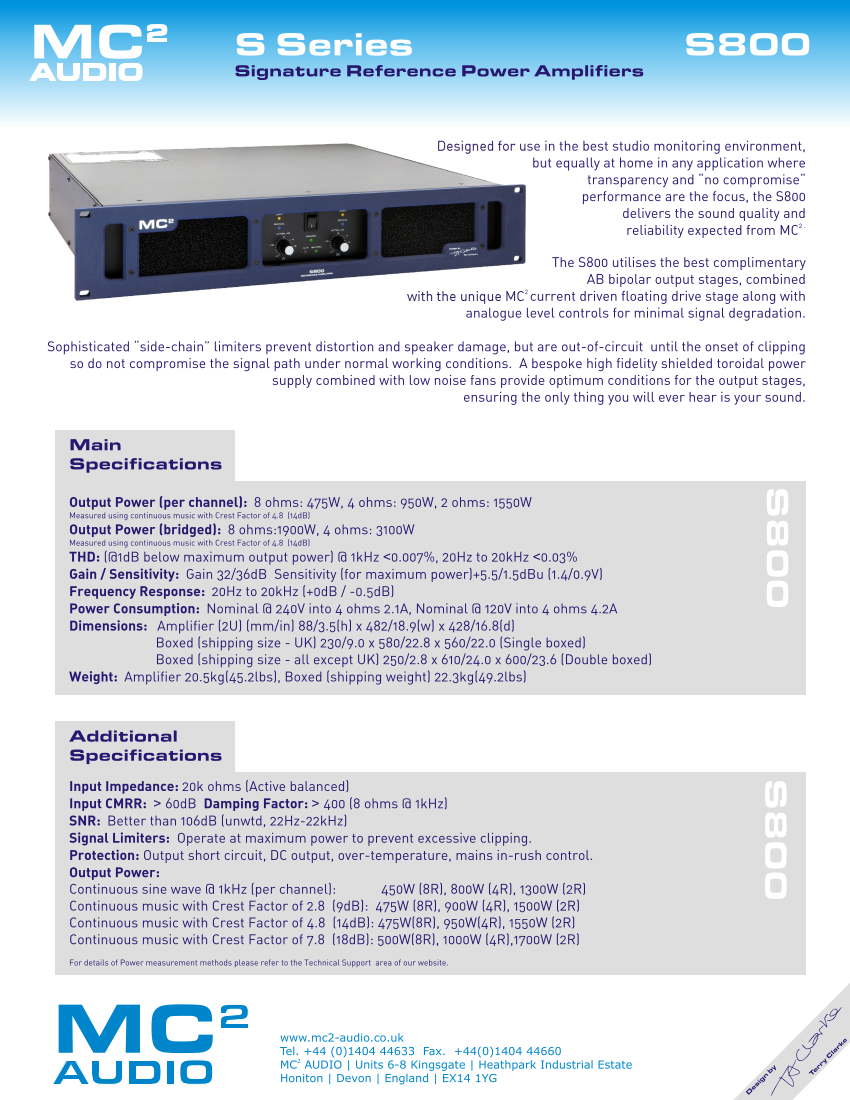

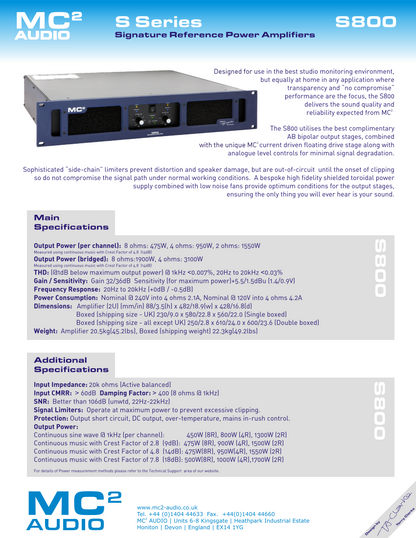

Specifications
Number of channels | 2 |
Output Power: (per channel) | |
8 ohms | 475W |
4 ohms | 950W |
2 ohms | 1550W |
Output Power: (bridged) | |
8 ohms | 1900W |
4 ohms | 3100W |
THD%: (@1dB below max output) | |
@ 1kHz | <0.007% |
20Hz to 20kHz | < 0.03% |
Gain / Sensitivity: | |
Gain | 32/26dB |
Sensitivity (for max power) | +6dBu/+12dBu (1.5/3.00V) |
Frequency Response: | 20Hz to 20kHz (+ 0/- 0.5dB) |

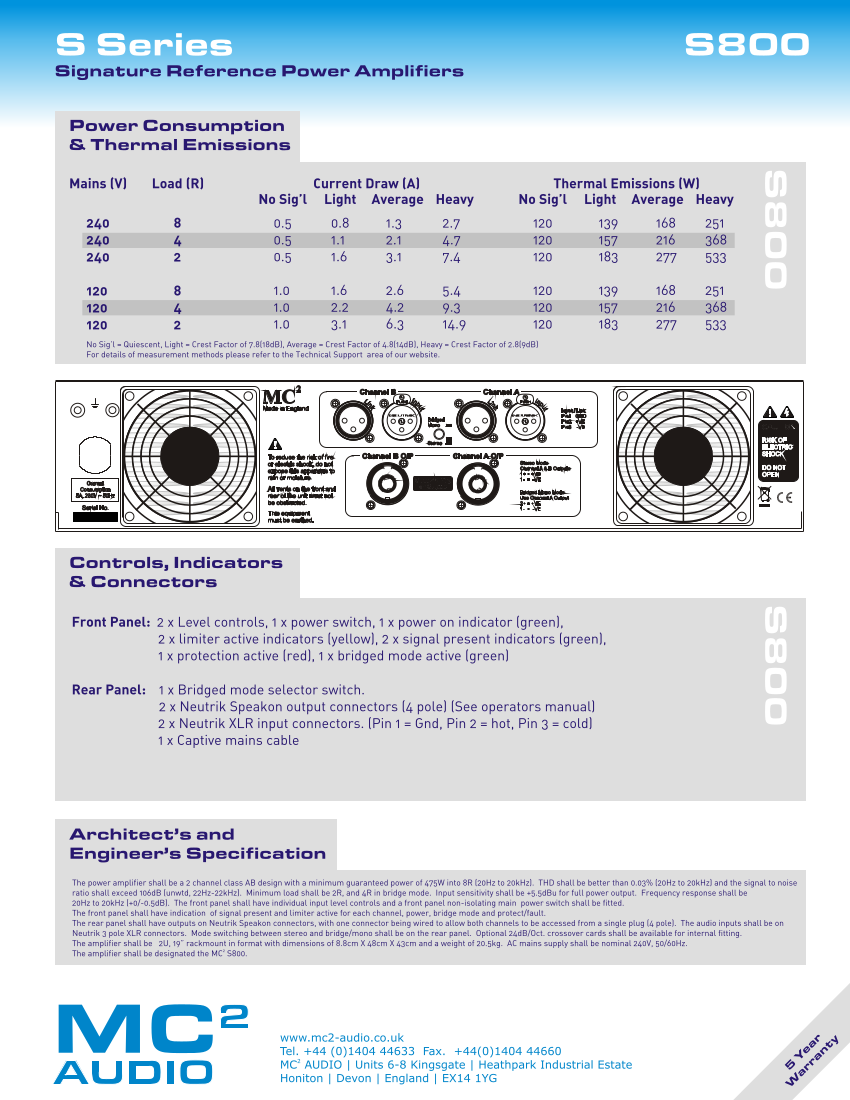

Power Consumption: | |
Nominal @ 240v into 4 ohms | 2.1A |
Nominal @ 120v into 4 ohms | 4.2A |
Dimensions: (2U) (mm) | |
Amplifier | 88(h) x 482(w) x 428(d) |
Single Box (UK shipping) | 230 x 580 x 560 |
Double Box (outside UK) | 250 x 610 x 600 |
Weight: | |
Amplifier | 20.5kg |
Boxed (shipping weight) | 22.3kg |
