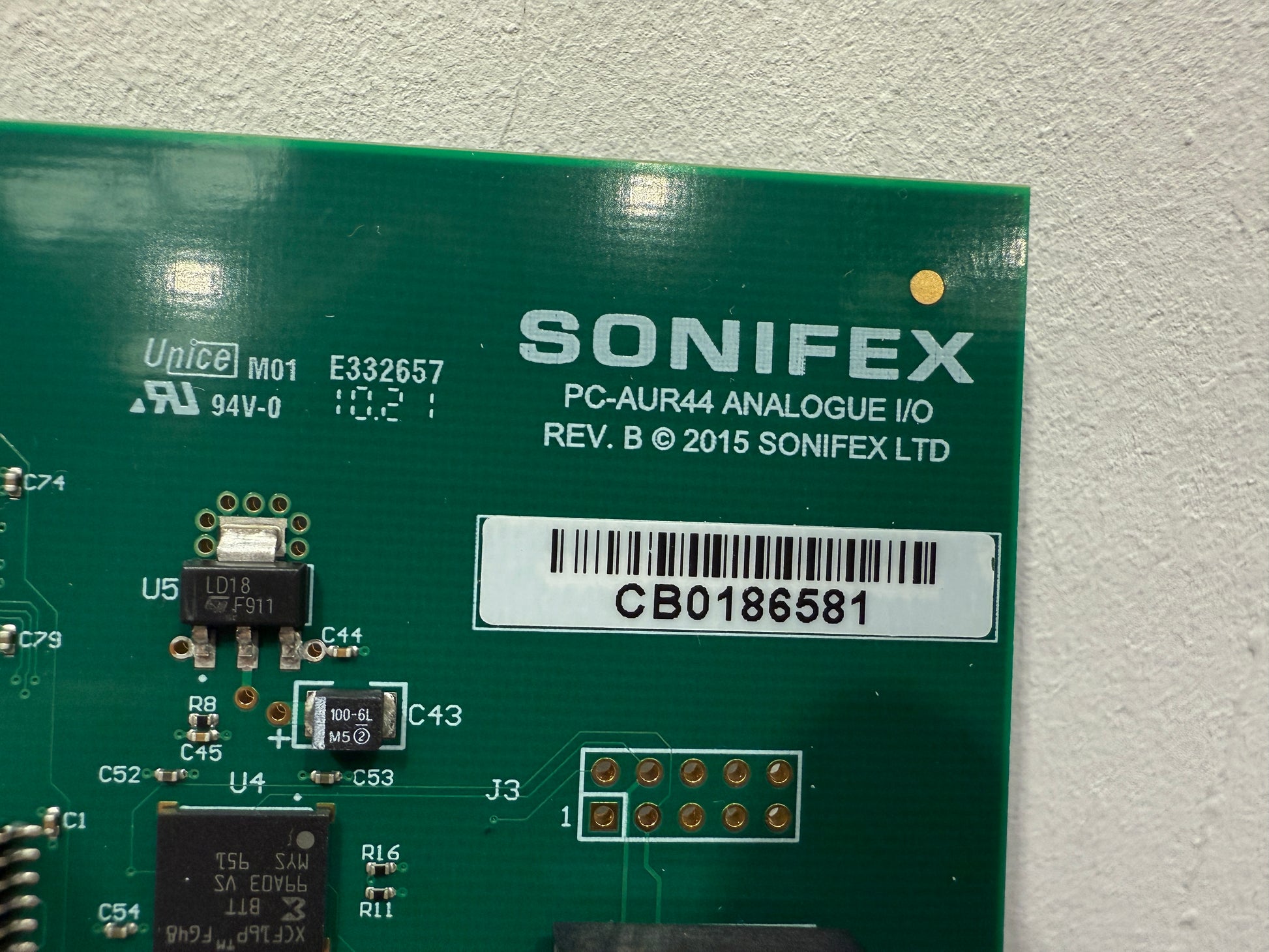

Sonifex Auricon 4.4 - PC-AUR44 Analogue I/O Professional Soundcard (Balanced) 4 Stereo I/O - RRP
Sonifex Auricon 4.4 - PC-AUR44 Analogue I/O Professional Soundcard (Balanced) 4 Stereo I/O - RRP
Low stock: 1 left
- • Ready to Ship from our UK Warehouse
- • Professionally Refurbished
- • 30-day Money Back Guarantee
Couldn't load pickup availability

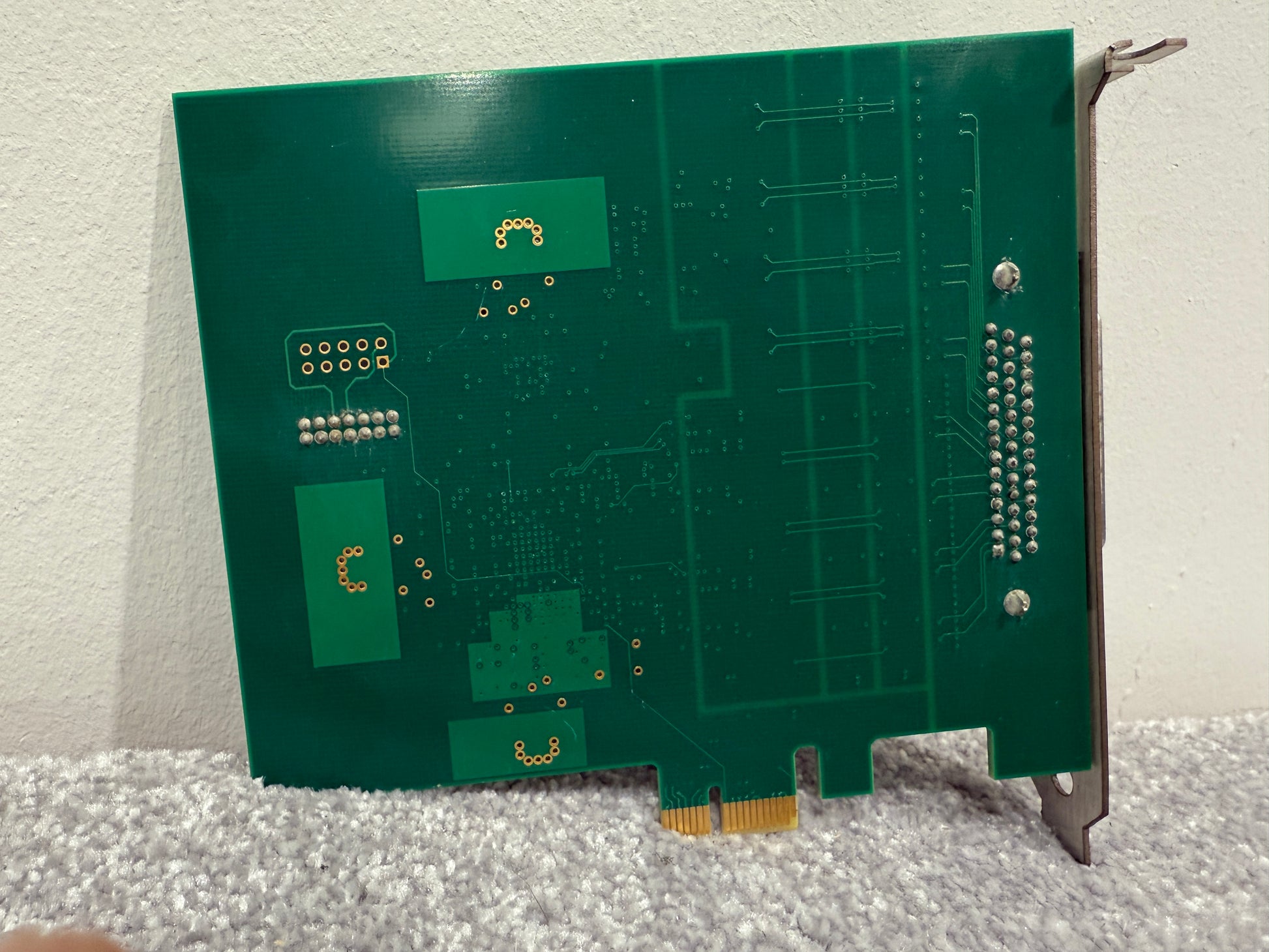

Very good overall condition. Tested and working perfectly. High end soundcard at a great price. No accessories or original box included. Will be shipped in a static free bag and non-original box.

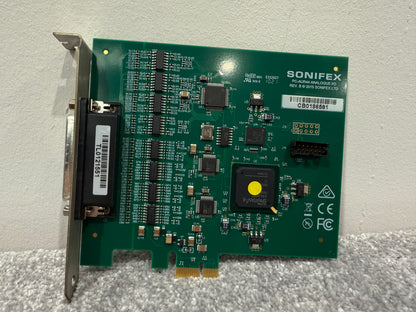

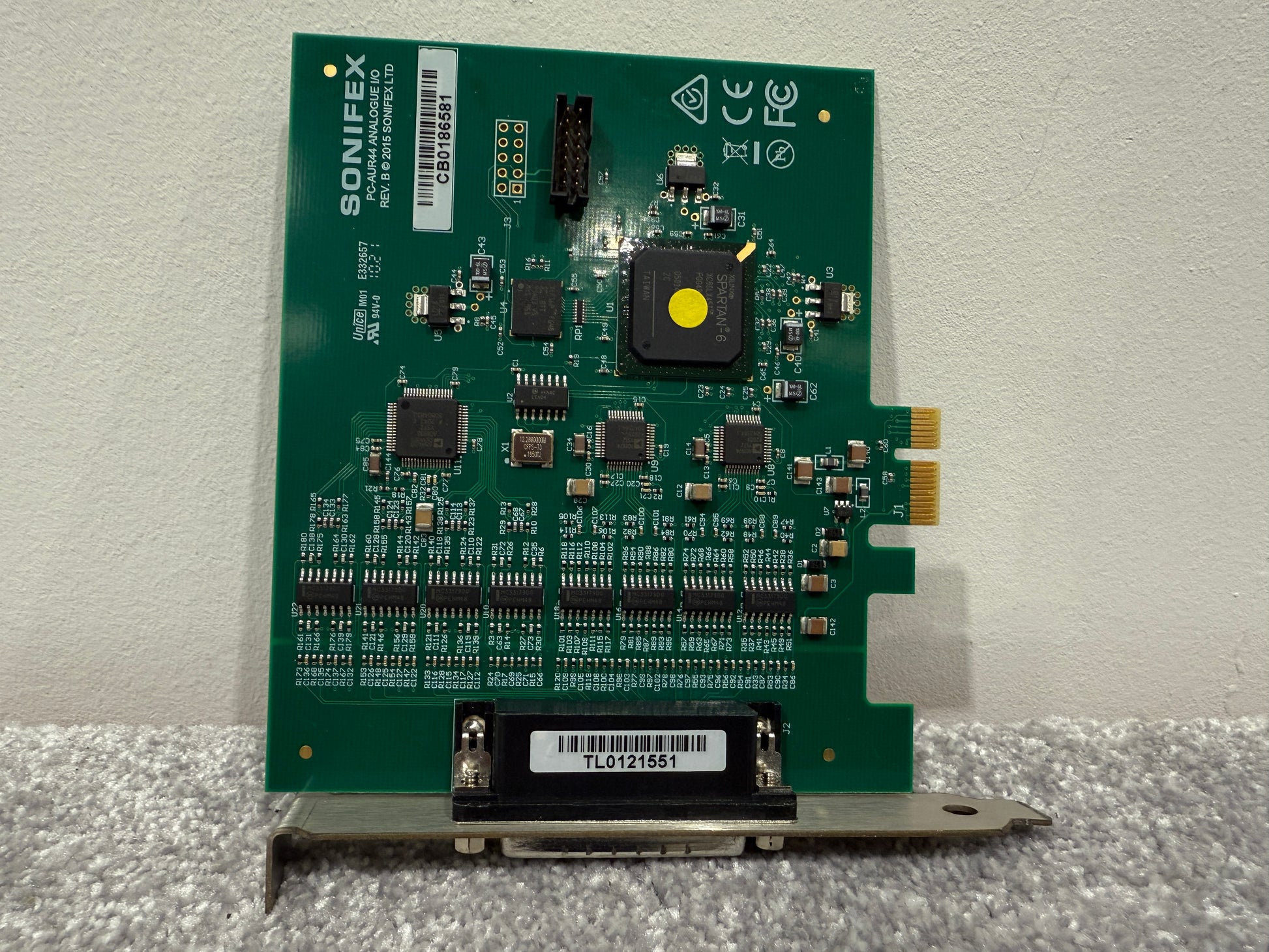

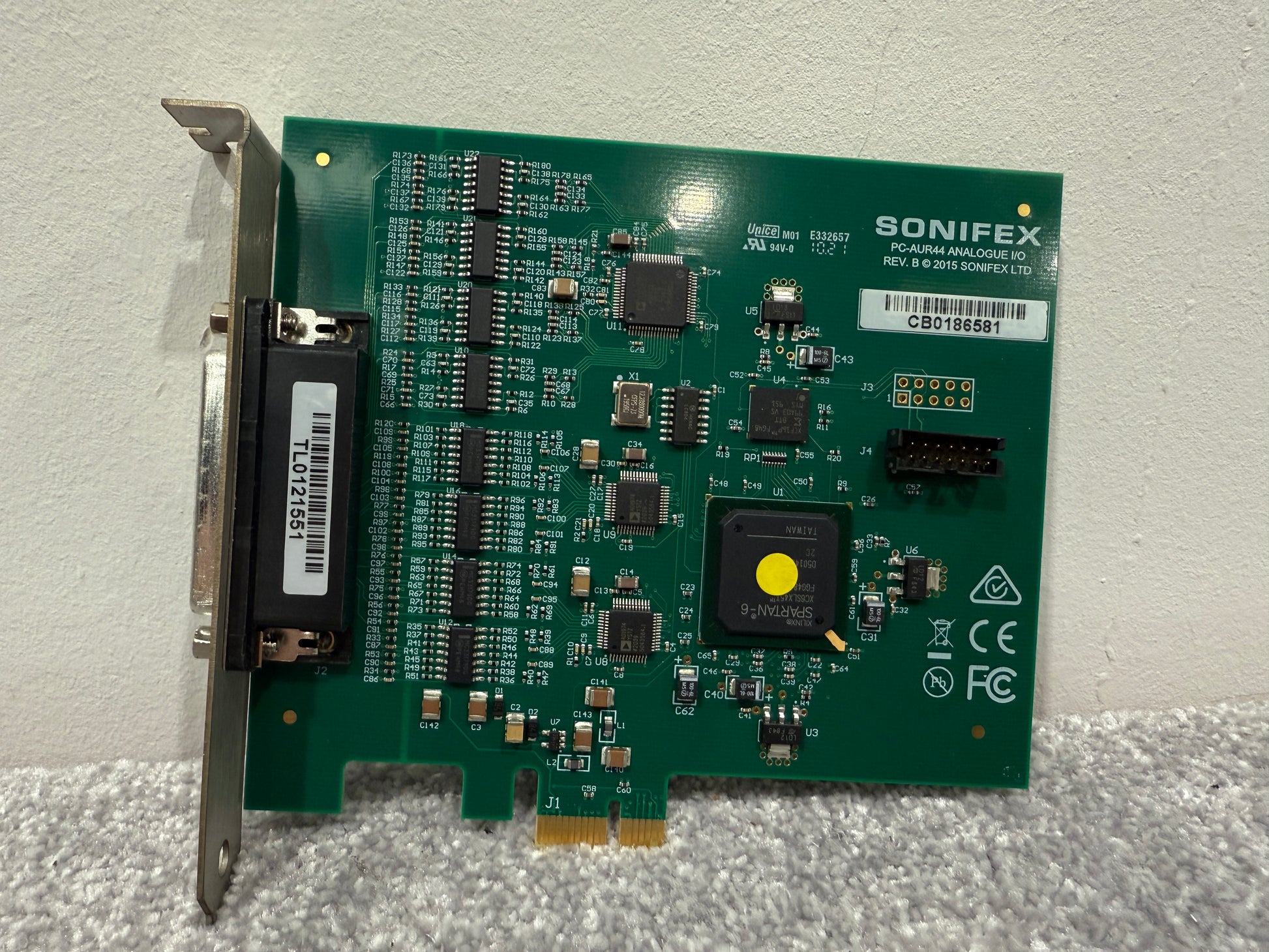

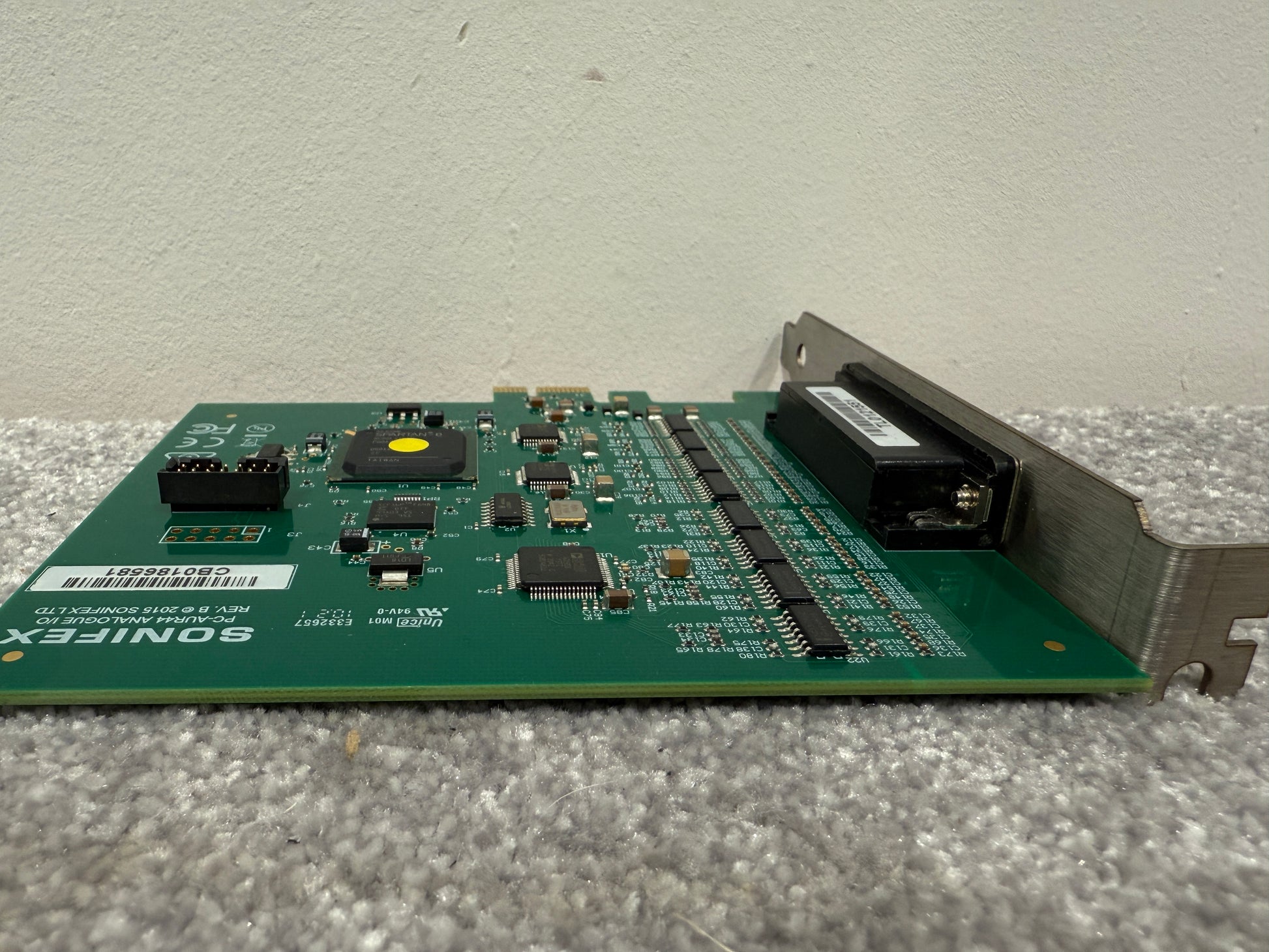

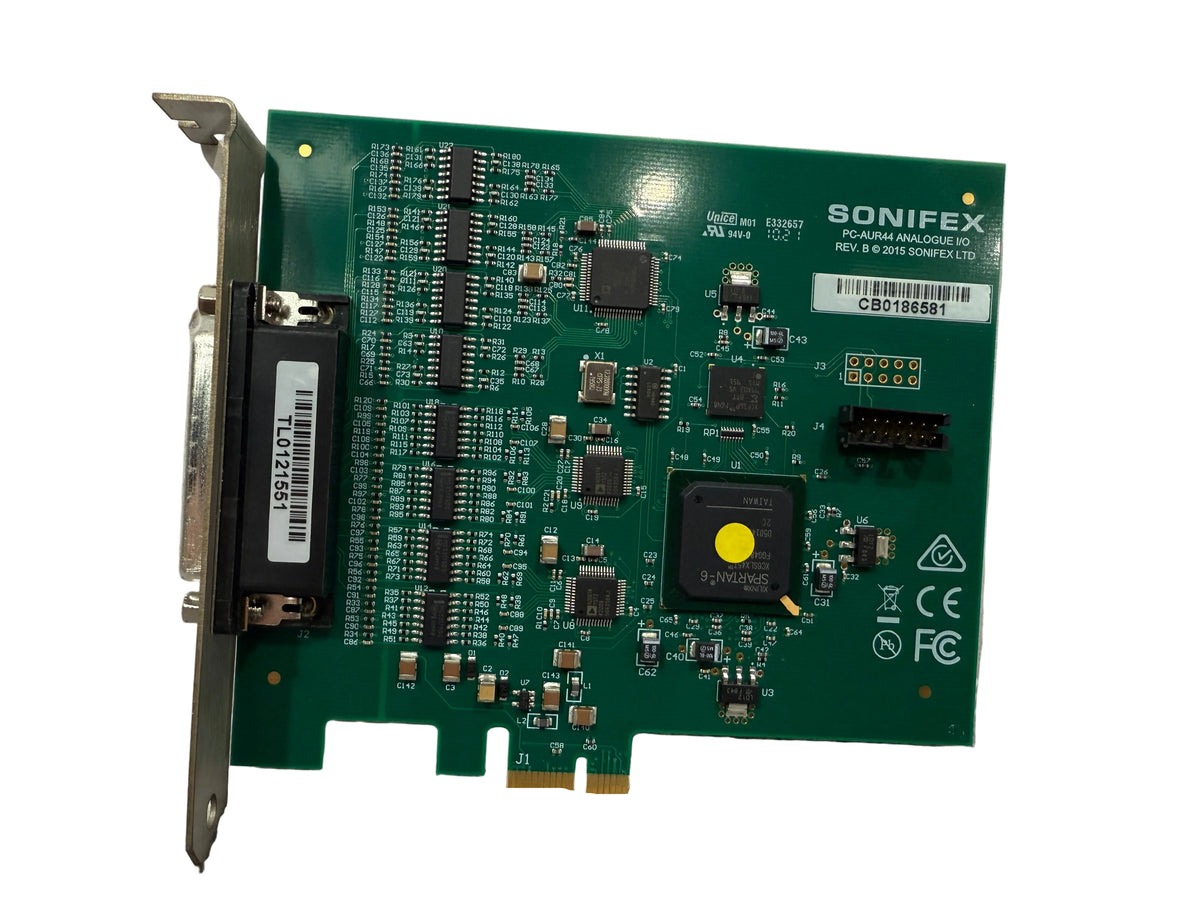

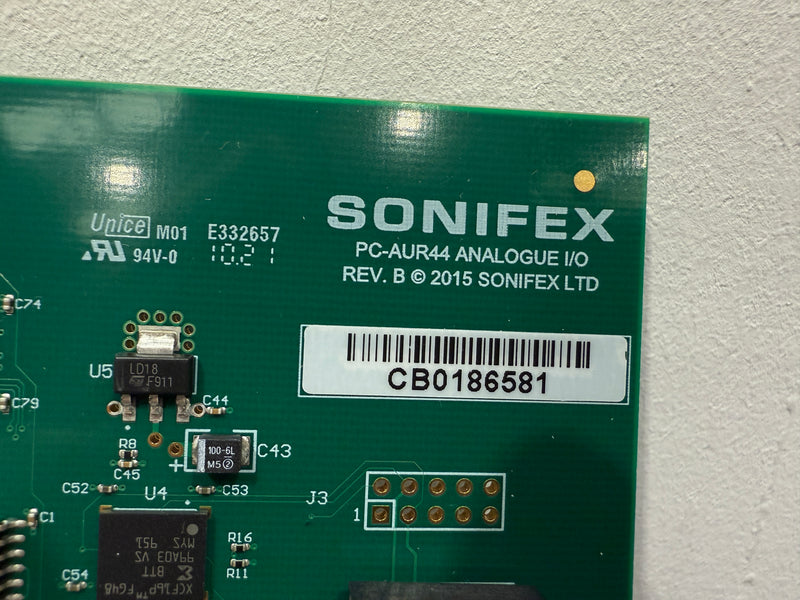

The Auricon 4.4 is a professional quality 4 stereo input and 4 stereo output analogue PCIe audio card. The inputs and outputs can be reconfigured as separate mono channels, giving eight inputs and outputs
There are four configuration settings for the Auricon 4.4, these being Mode (stereo/mono), H/W Sampling Rate, Input Coupling and Maximum Line Level. The mode may be configured as either stereo or mono. In mono mode the number of input and output channels that Windows sees is doubled. The maximum line level can be set to +15dBu, +16dBu, +18dBu, +20dBu, +22dBu or +24dBu. The input coupling can be set to either DC or AC (the default is AC).
The playback topology consists of a master output level, mute control and peak meter, and input monitor level and mute controls for each of the line inputs. The record topology consists of a master input level, mute control and peak meter, and level controls and mutes for the physical input and digital loopback. The digital loopback allows the output of the card to be digitally mixed back into the input. The range on the input and output master controls and individual line controls is -96dB to 0dB.
Dynamic Range: | 114dB typical (unweighted) |
Input Impedance: | 20k (balanced) |
Output Impedance: | 40Ω (balanced) |
Maximum Signal: | +24dBu (34.6Vp-p) |
Frequency Response: | Input – DC to 88kHz (DC coupling) 1Hz to 88kHz (AC coupling) Output – DC to 88kHz (192kHz hardware sampling rate) |

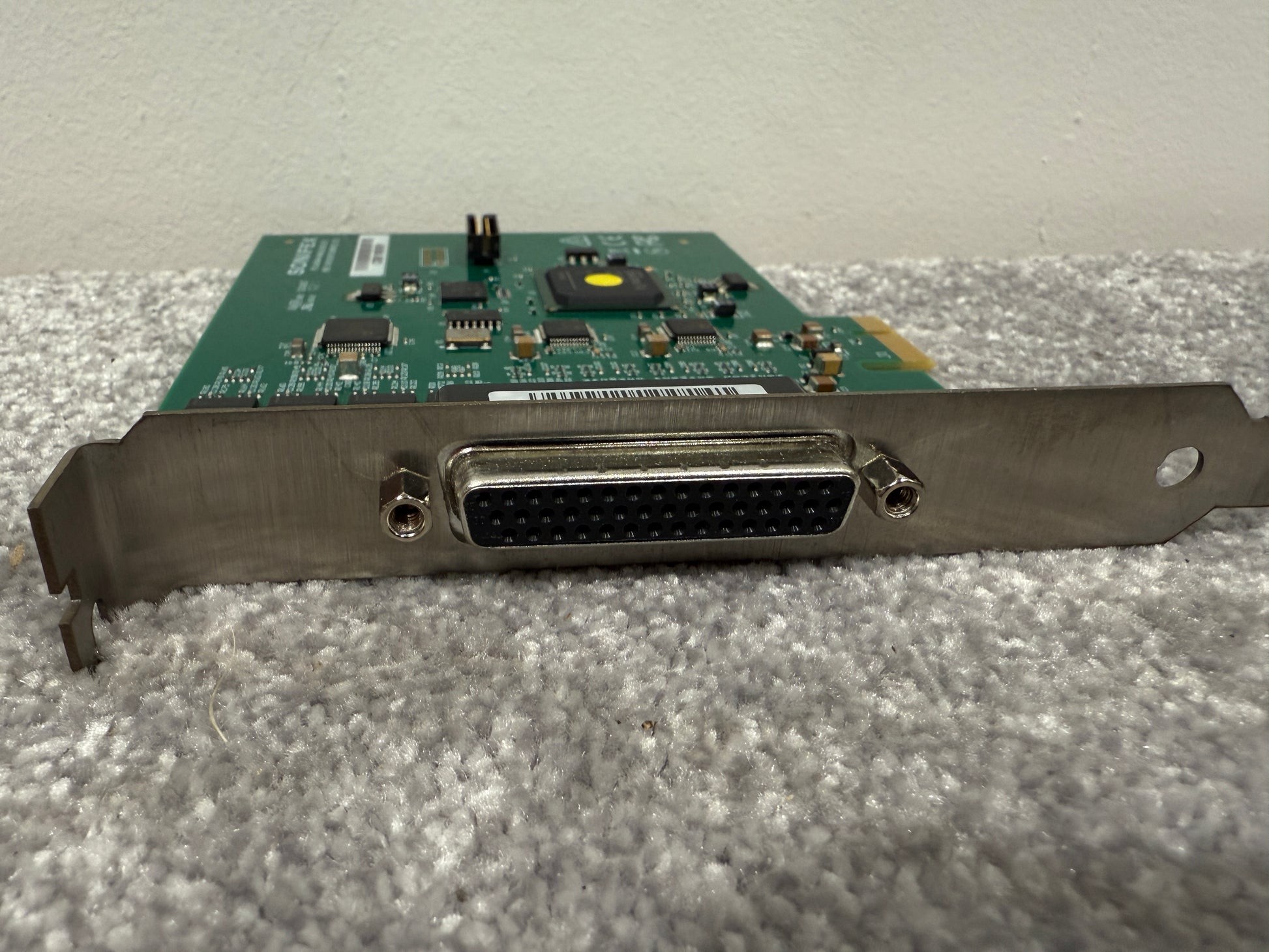

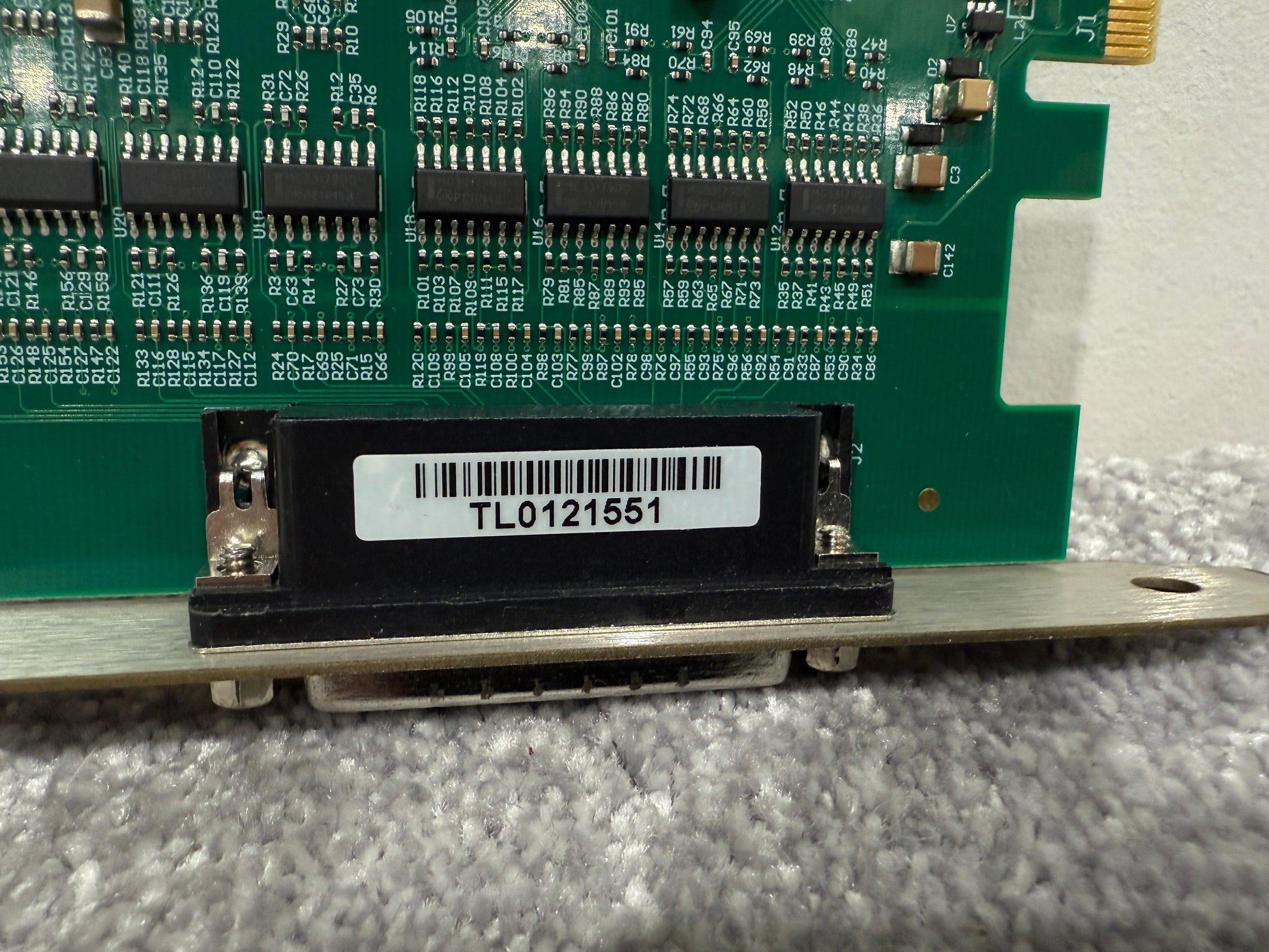

Connector: | 44-pin high-density D-type female |
