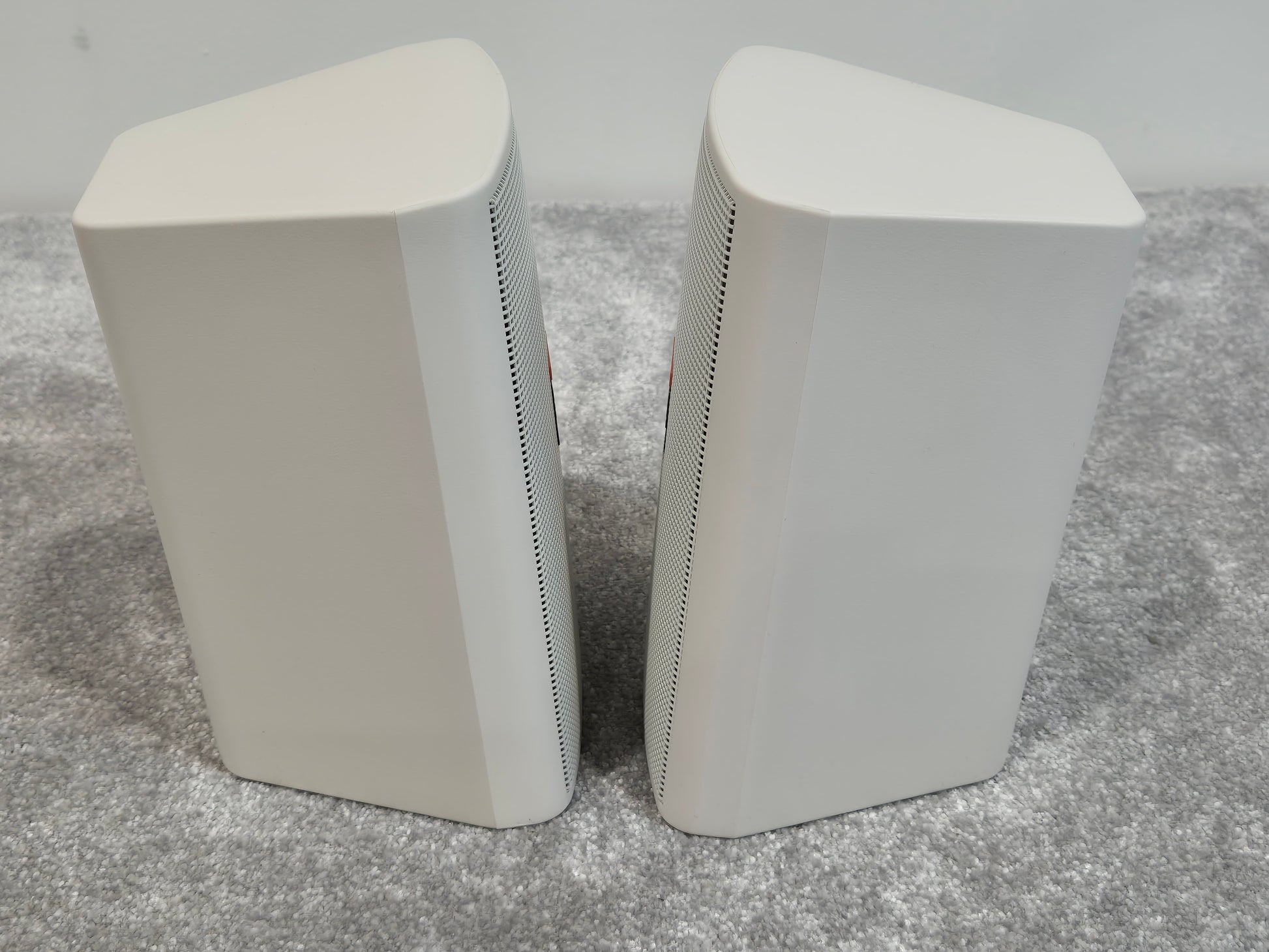

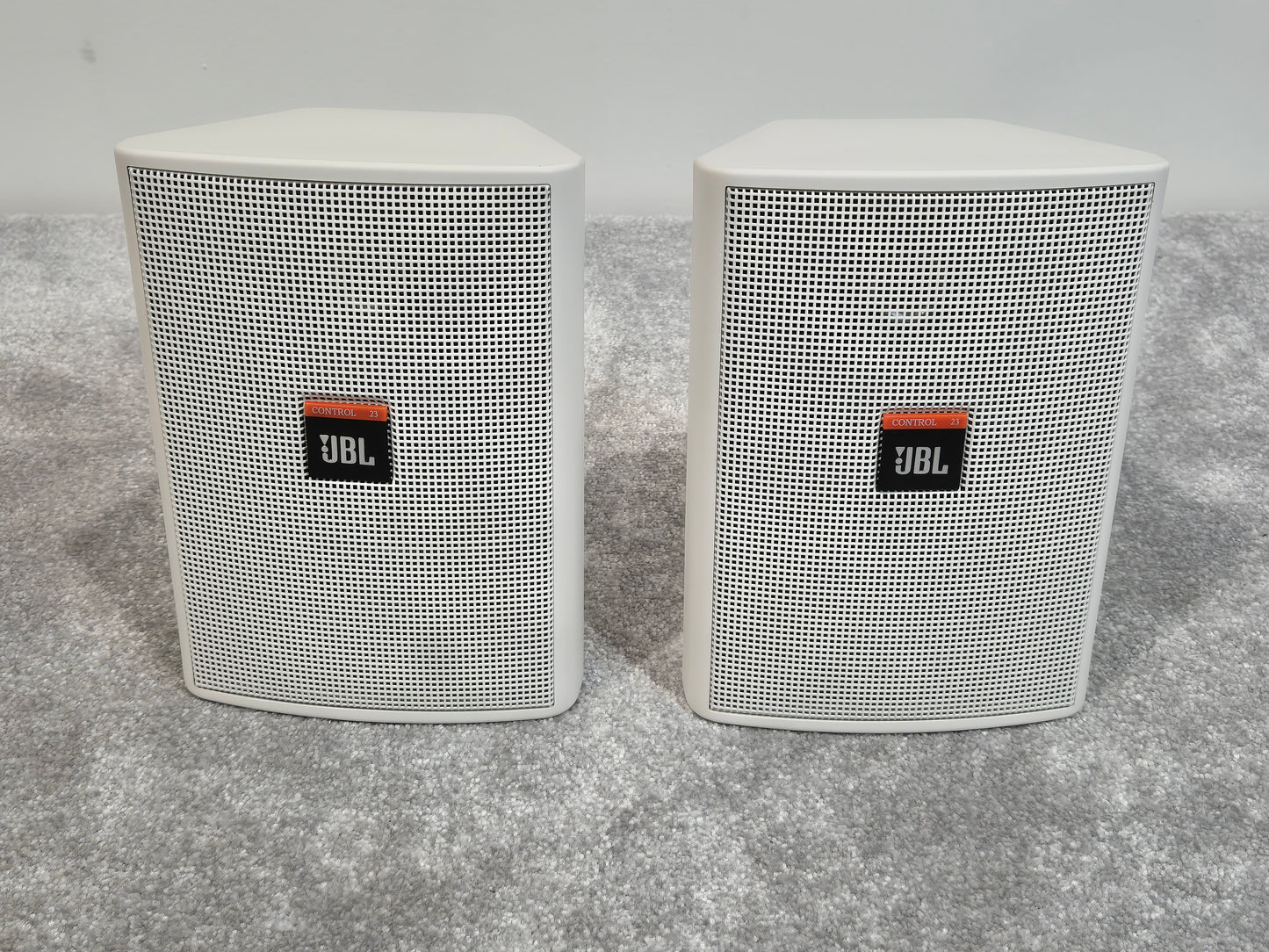

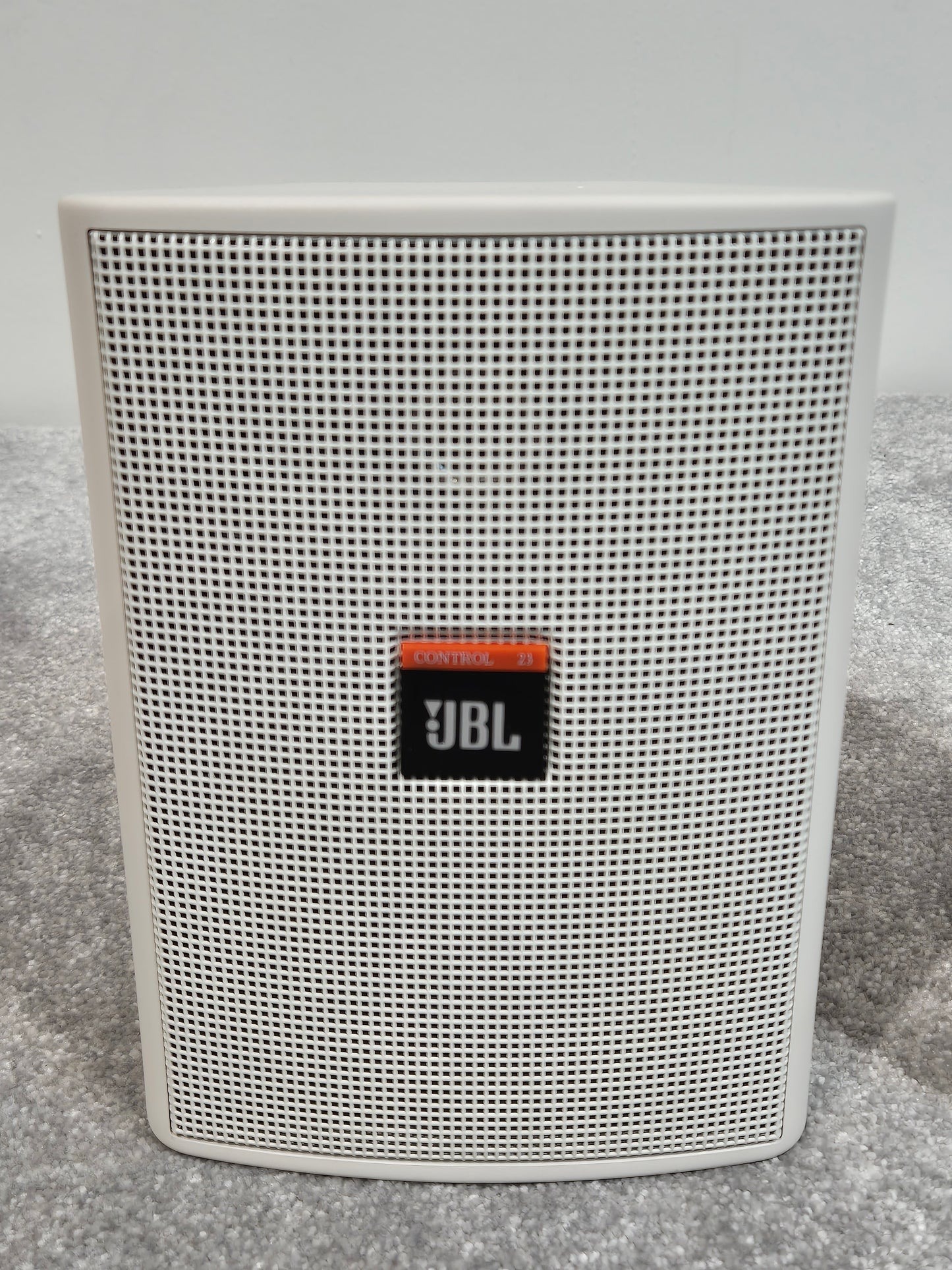

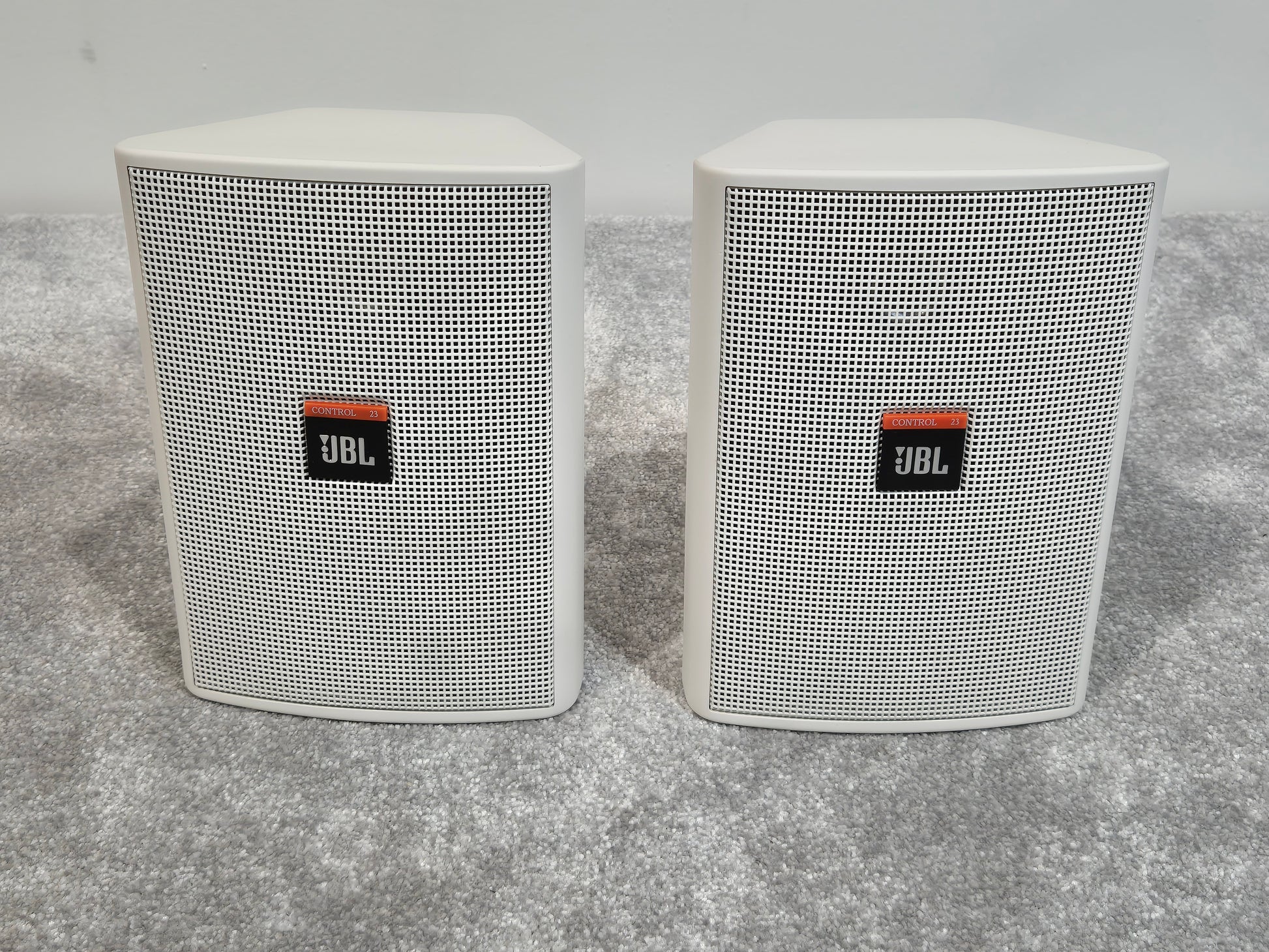

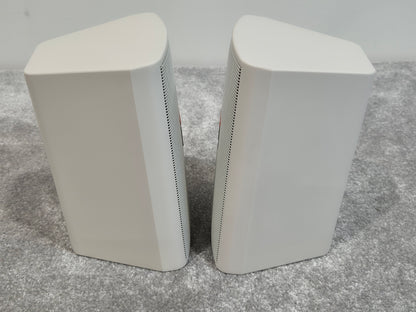

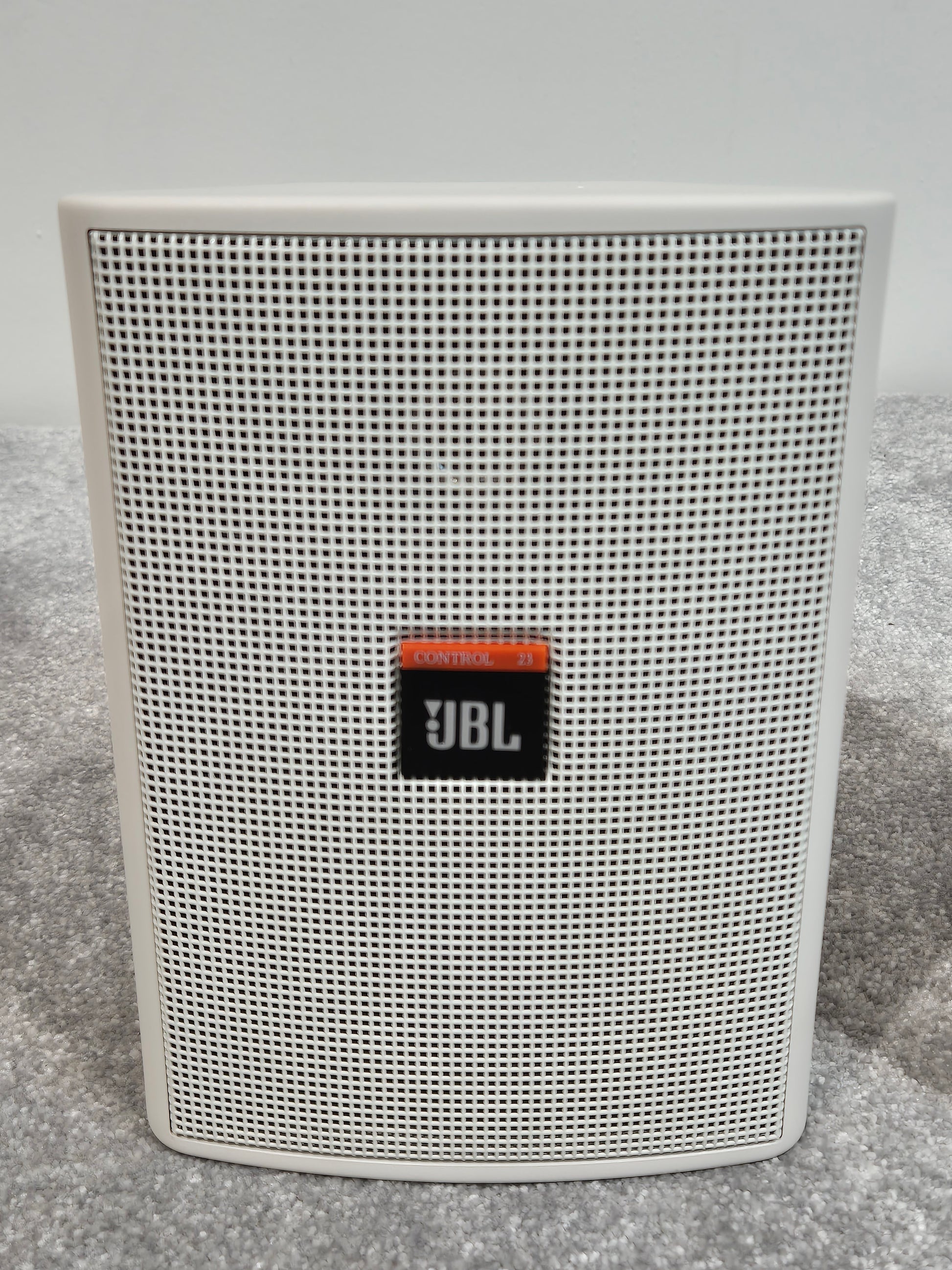

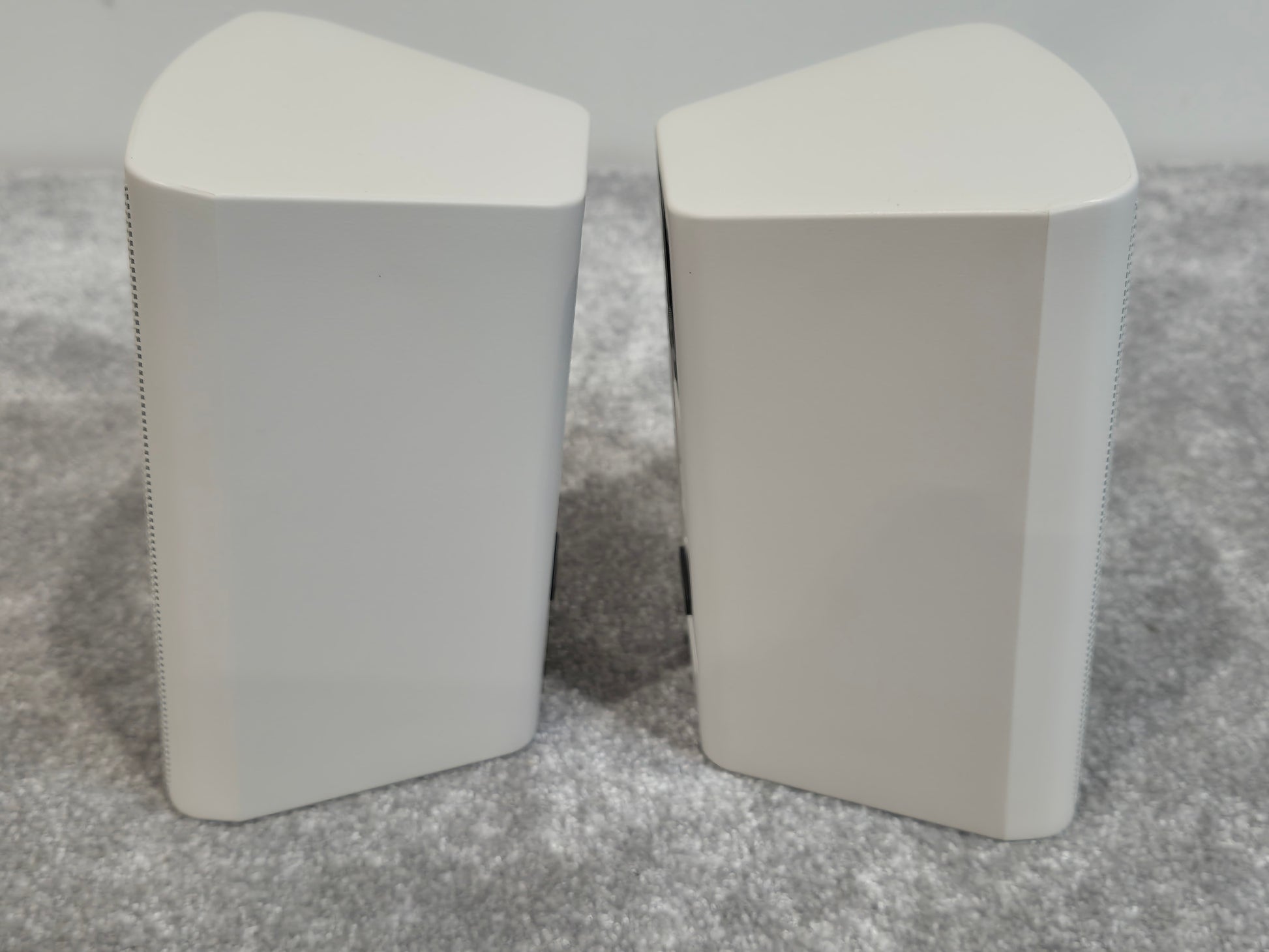

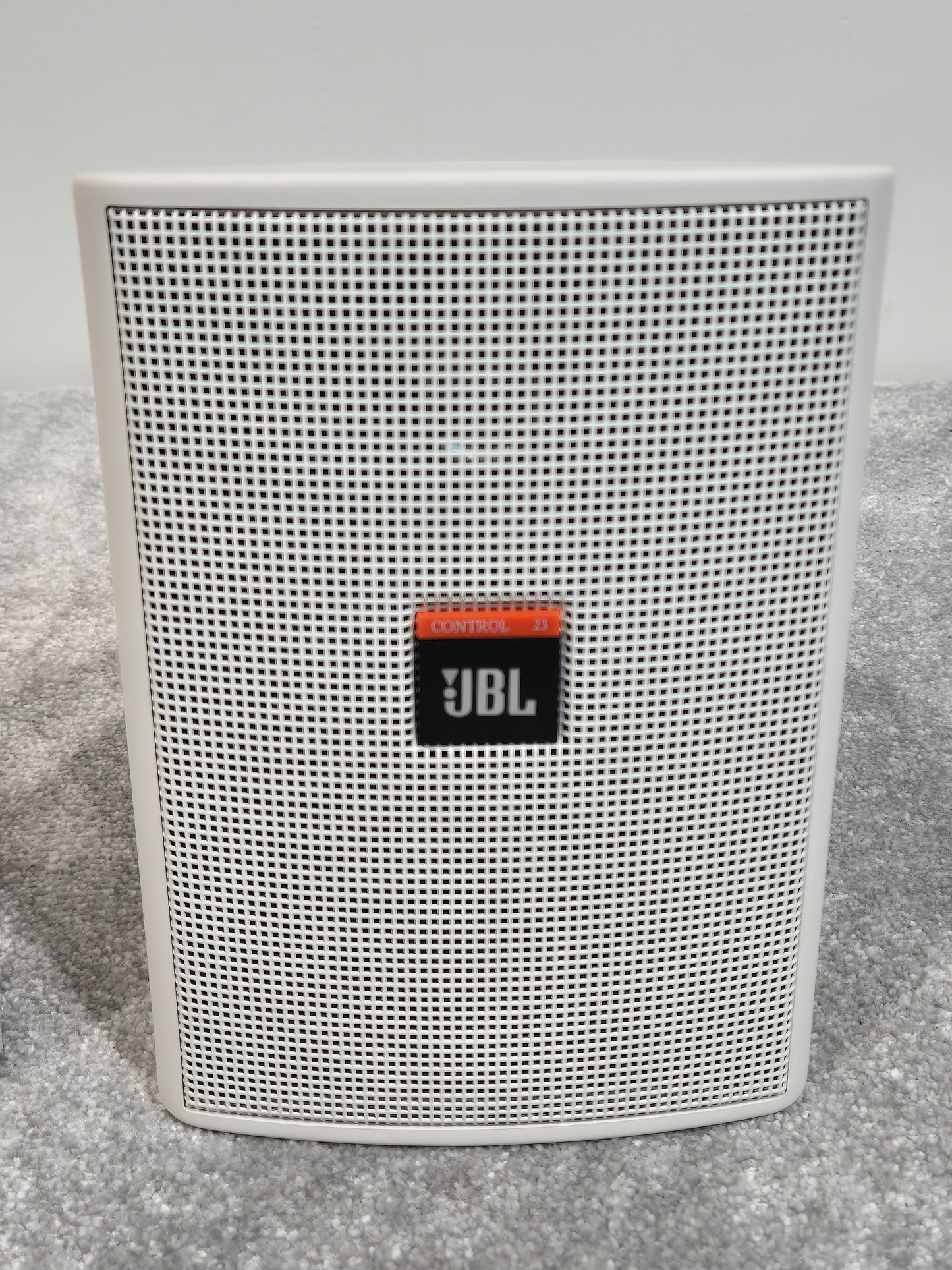

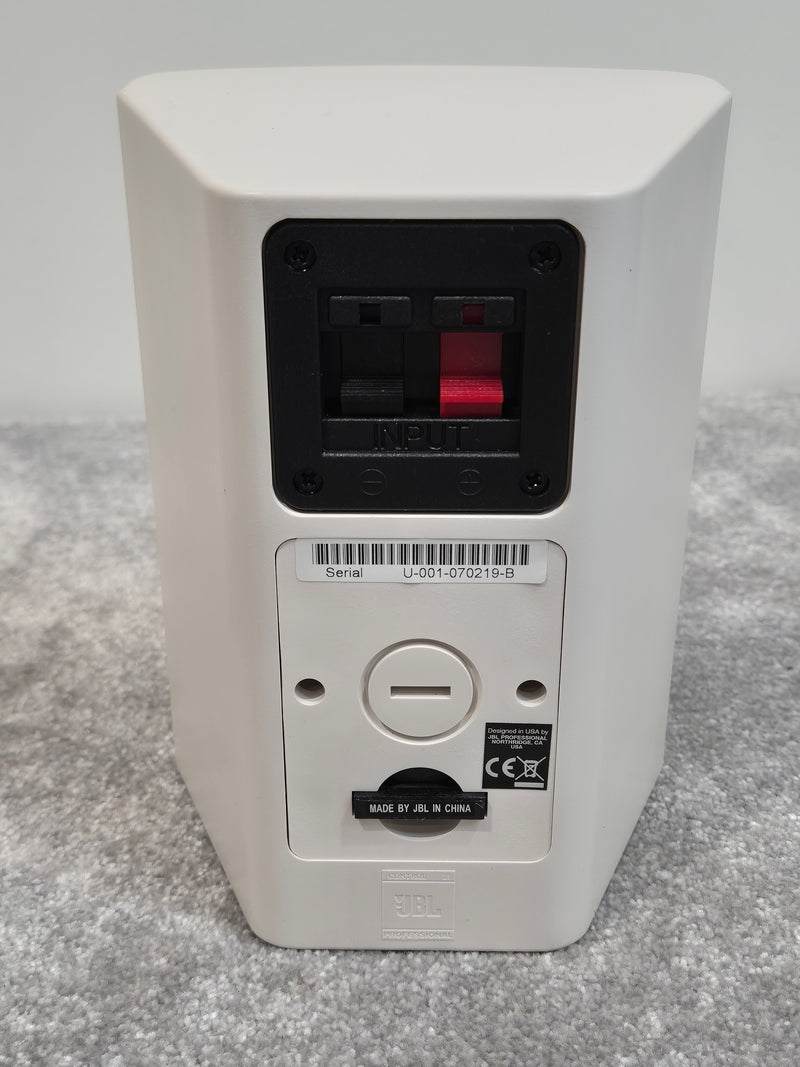

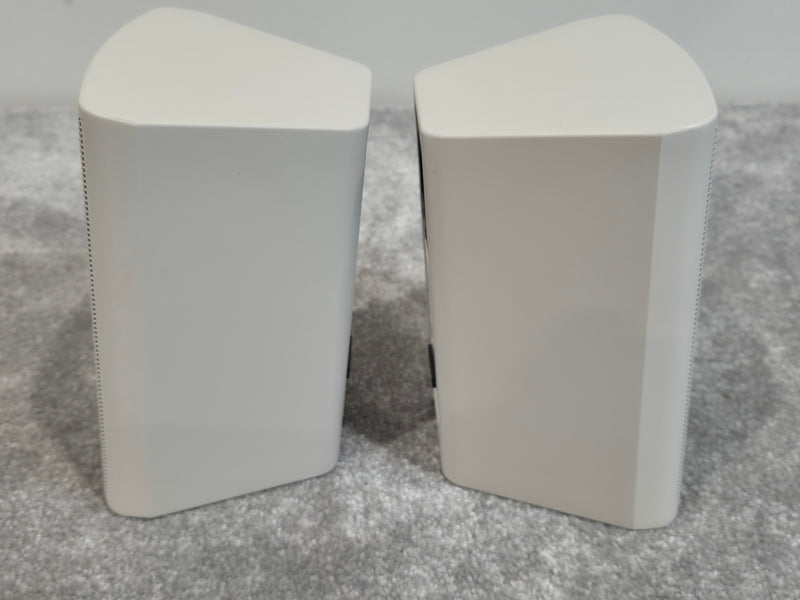

JBL Control 23 - Compact Two-Way Loudspeakers - White - Open Box New
JBL Control 23 - Compact Two-Way Loudspeakers - White - Open Box New
Low stock: 1 left
- • Ready to Ship from our UK Warehouse
- • Professionally Refurbished
- • 30-day Money Back Guarantee
Couldn't load pickup availability

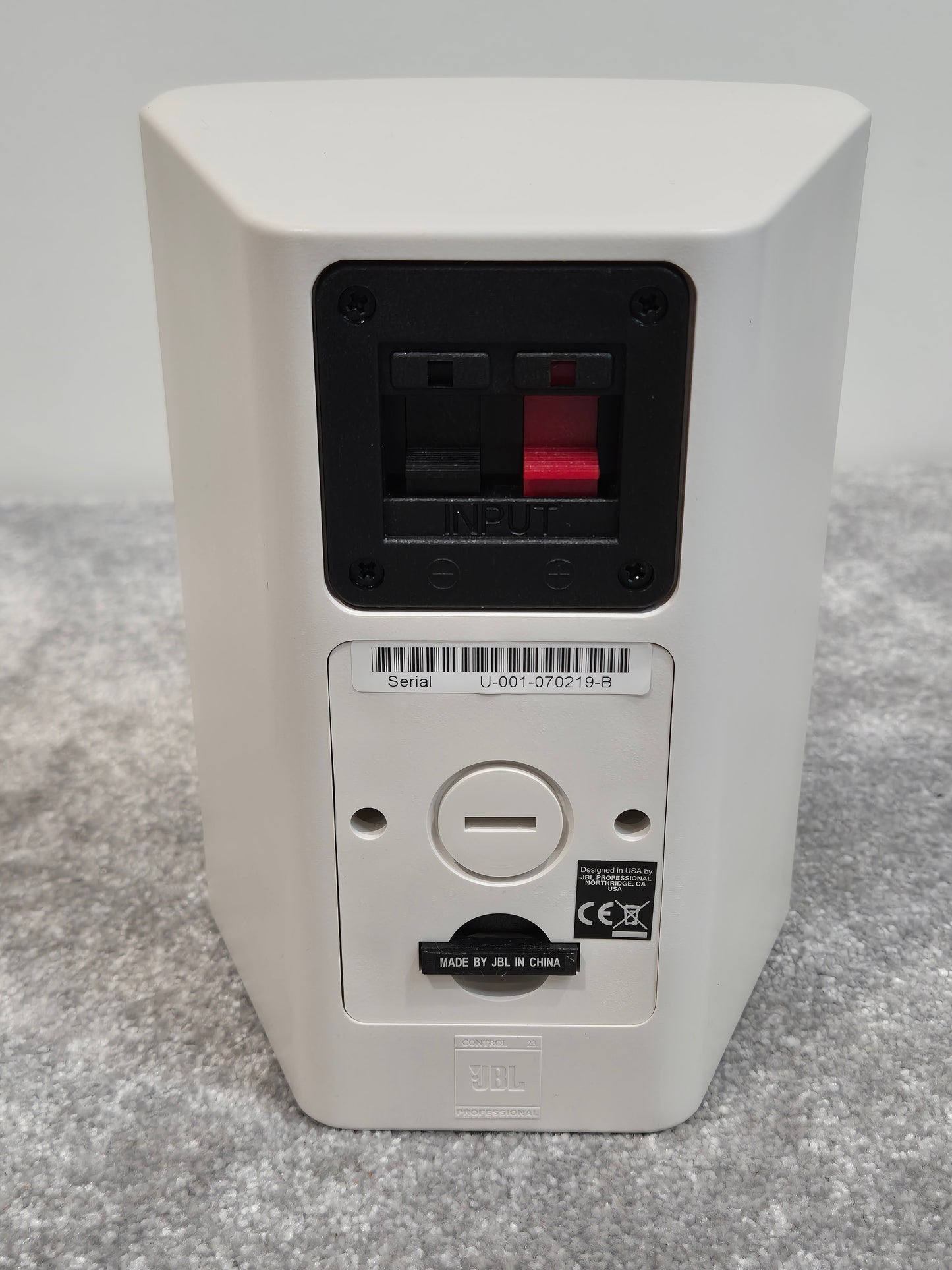

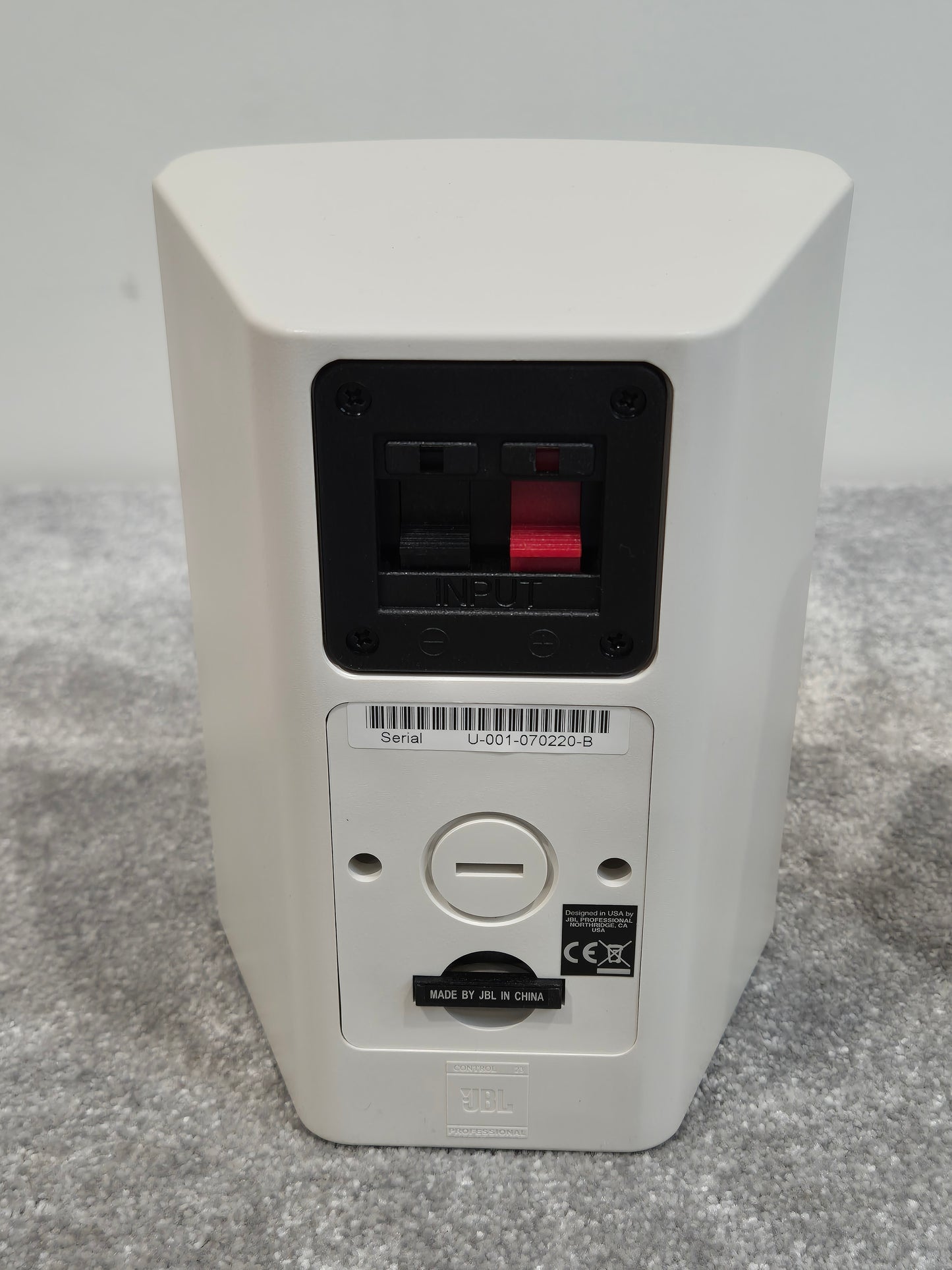

Open box new, tested and working perfectly. Original box and manuals included.
JBL Control 23 key features:
-
Frequency Range (+/-10 dB): 70 Hz to 20 kHz.
-
Frequency Response (+/-3 dB): 95 Hz - 19 kHz.
-
Power Rating: 100W Continuous Program (2 hrs), 50 W (200W peak), Continuous Pink Noise (2 hrs), 40 W (160W peak) Continuous Pink Noise (100 hrs).
-
Maximum Input Voltage: 17.2 V RMS (2 hrs), 34.4 V peak.
-
Maximum SPL: 103 dB average continuous pink noise (109 dB peak).
-
Sensitivity: 86 dB, 1W/1m (average 100 Hz – 10 kHz).
-
Coverage Angle: 100° x 100°.
-
Directivity Factor (Q): 5.8 (averaged 1kHz – 16kHz).
-
Directivity Index (DI): 7.2 dB (averaged 1kHz – 16kHz).
-
Nominal Impedance: 8 ohms (THRU setting)
-
Crossover Type: 2nd order low-pass, 2nd order high-pass.
-
Transformer Taps: 70V: 15W, 7.5W, 3.7W, 1.8W; 100V: 15W, 7.5W, 3.7W.
-
High-Pass: 70 Hz high-pass (24 dB/oct) (for 8Ω operation and for all 70V/100V taps settings).
-
Low Frequency Driver: 76 mm (3.0 in), woven-fiberglass cone with pure butyl rubber surround, high-temp Kapton™ voice coil former, high-temp voice coil wire, optimised cone geometry, linear suspension spider, and FEA optimised motor structure.
-
High Frequency Driver: 13 mm (0.5 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
-
Enclosure Material: High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
